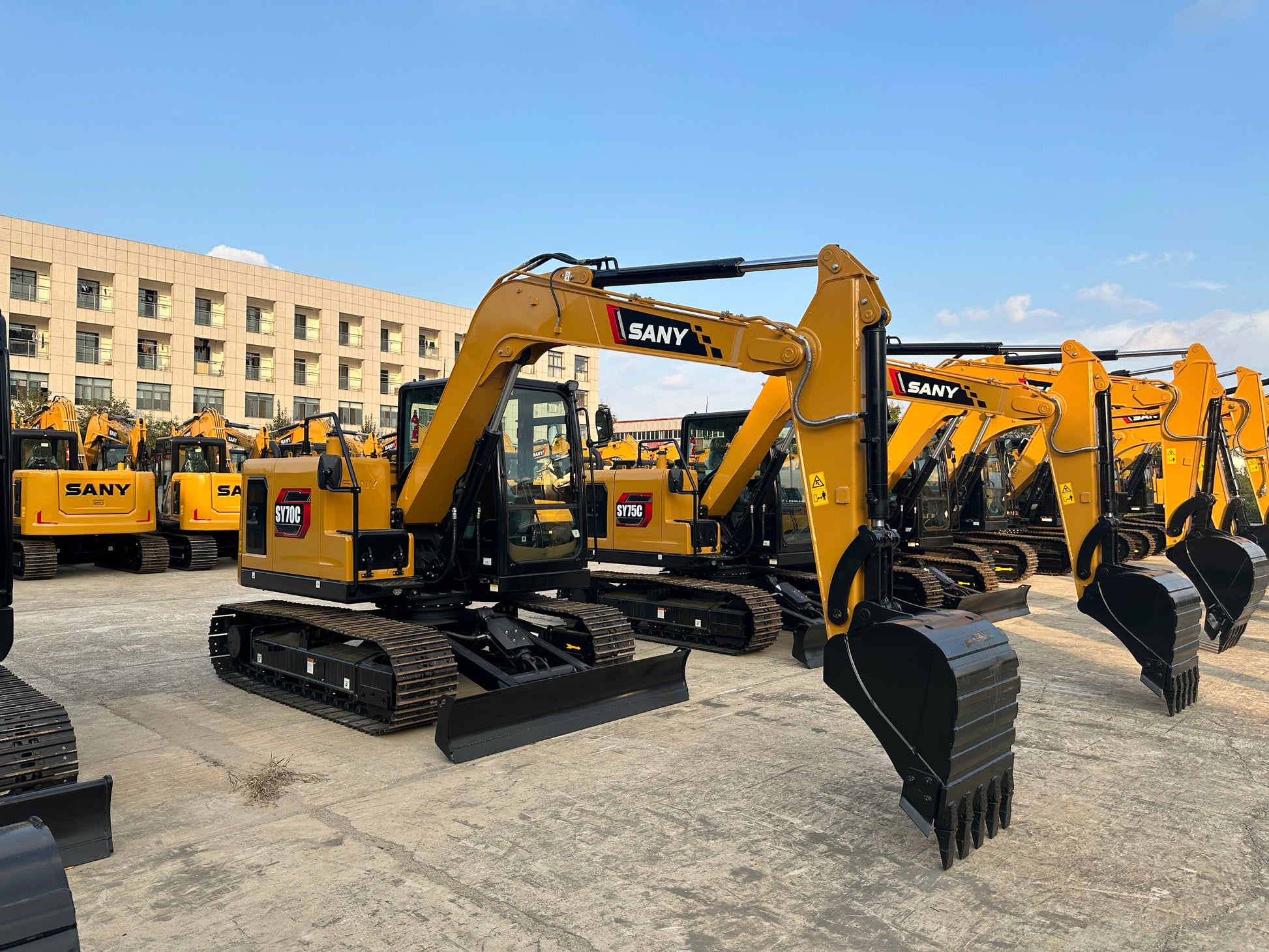

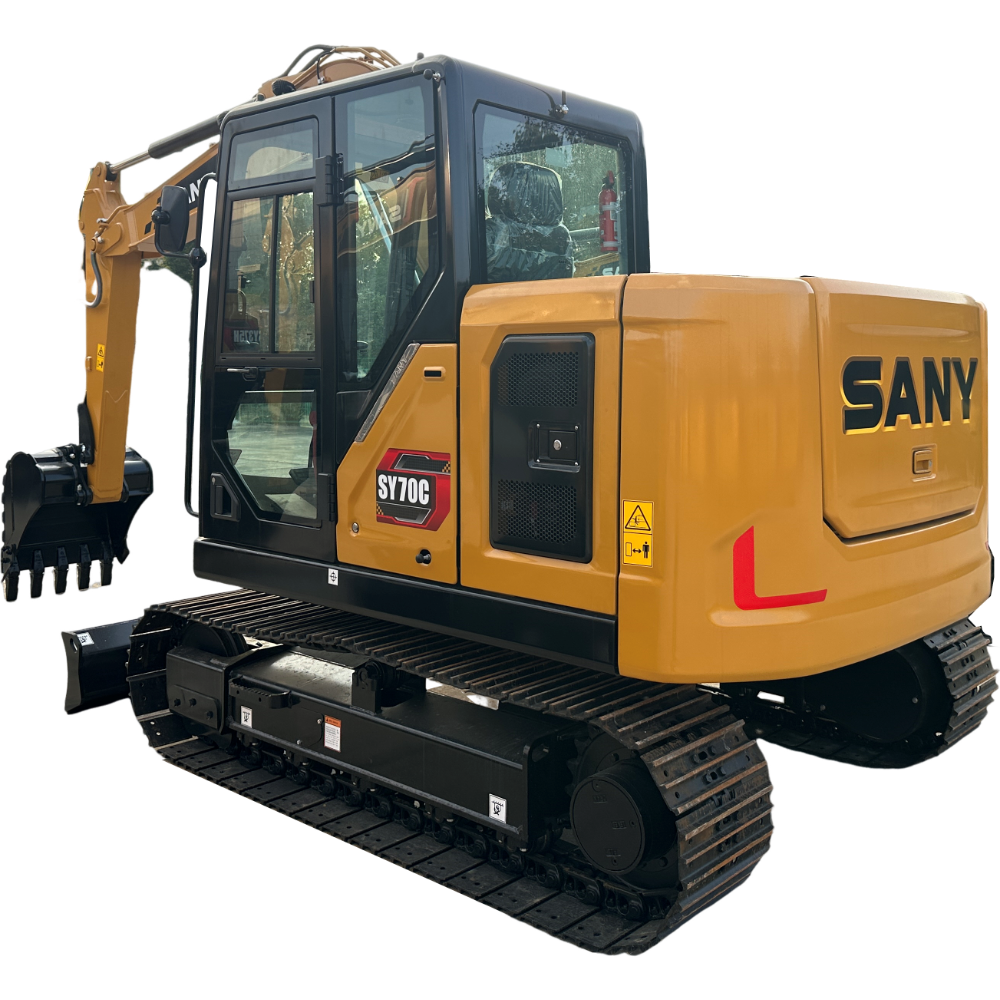

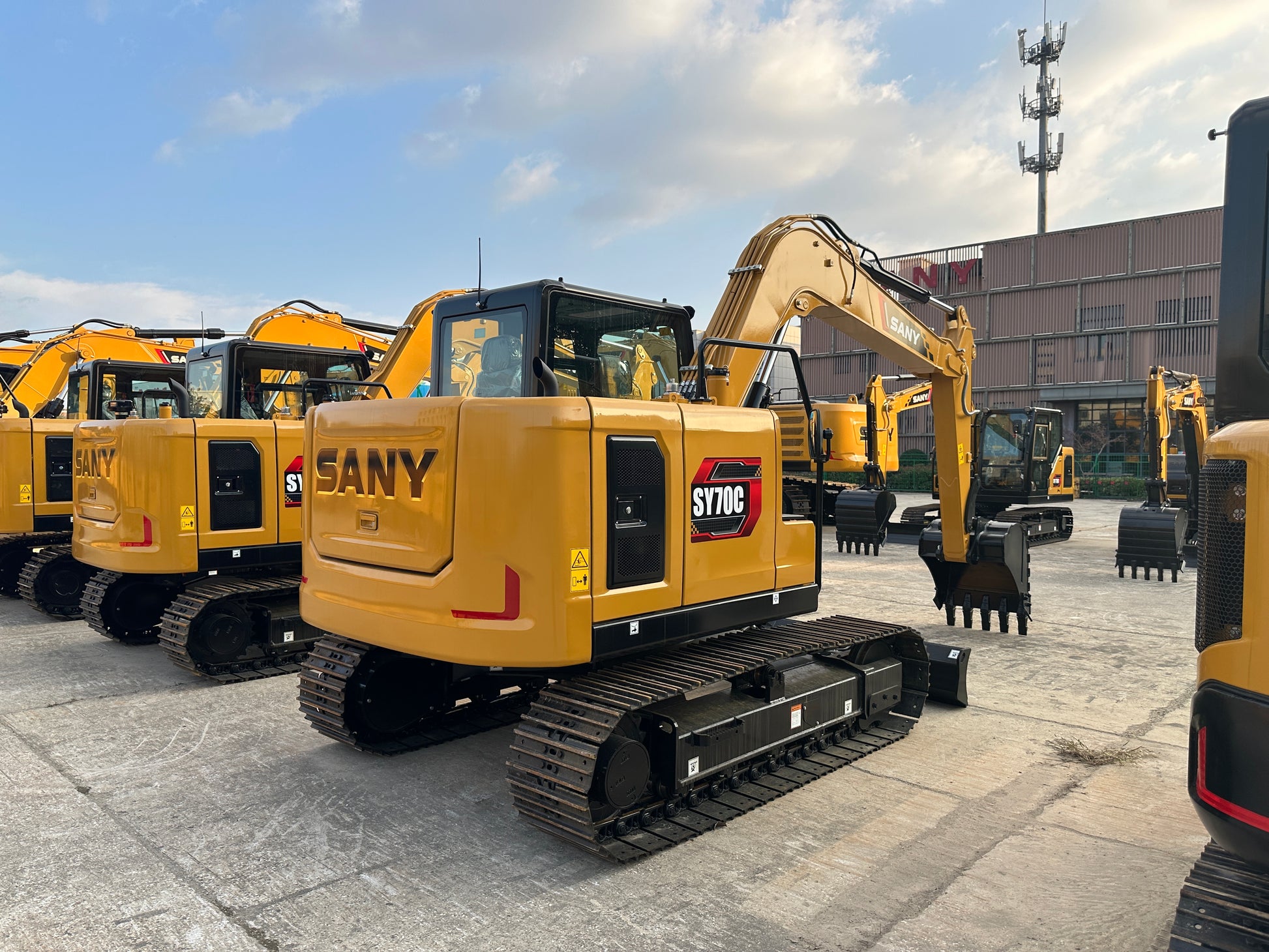

SANY SY70C EXCAVATOR

Specification

Weight of complete machine

6920kg

Dou Rong

0.12-0.32(0.28)m³

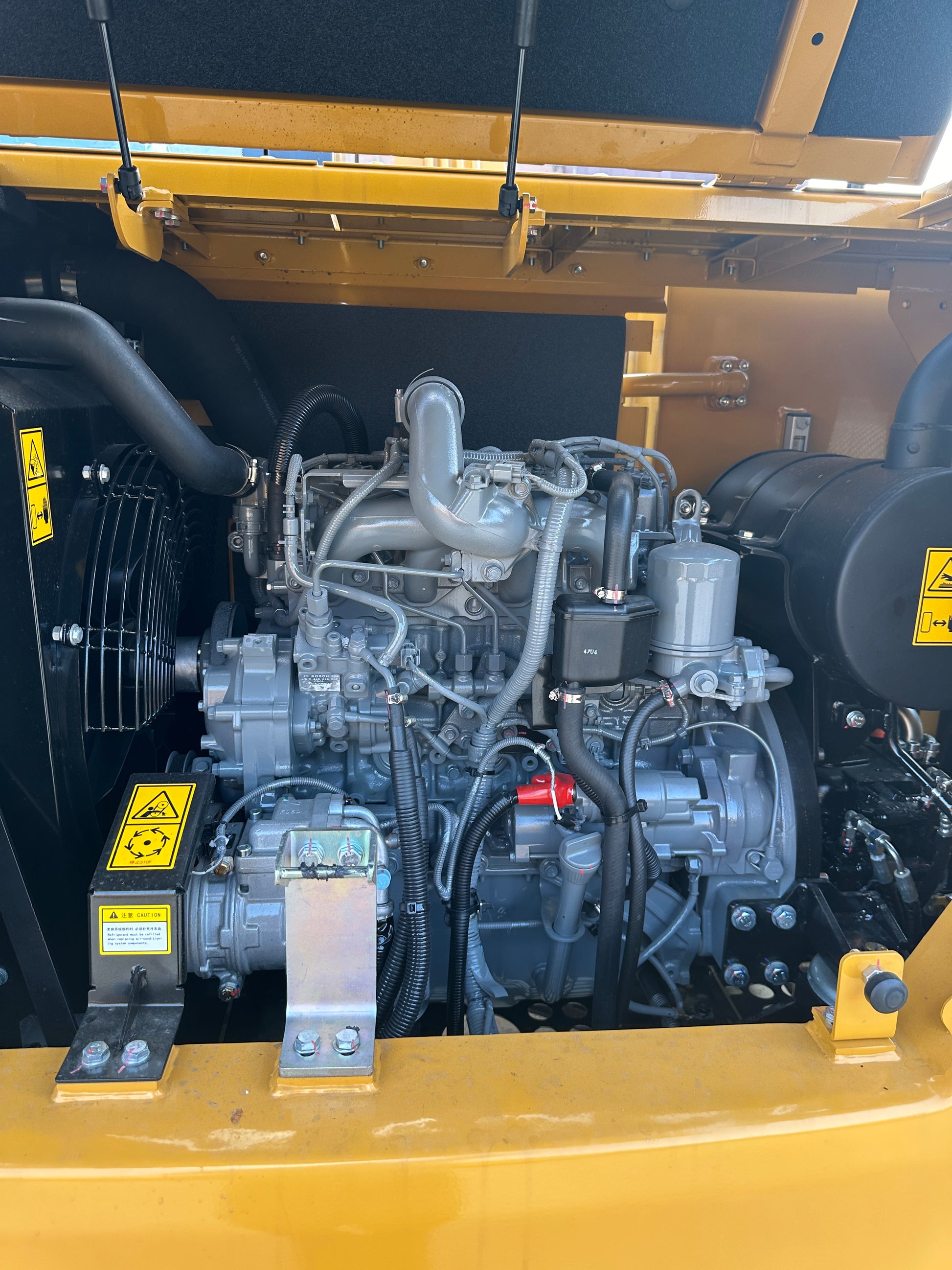

Engine

Model

V2607-DI-T-ET06e

Rated power

45.4/2400kW/rpm

Maximum torque

217/1600N·m/rpm

Displacement

2.615L

Performance

Gradeability

70%（35°）

Swing speed

11.5rpm

Ground specific pressure

33kPa

Bucket digging force

56kN

Arm digging force

38kN

Travel speed

4.2/2.4km/h

Walking part

Standard track

400mm

Each side of the carrier roller

1

Number of track shoes

42

Each side of the roller

5

Oil and Coolant Capacity

Final drive

2×1.2L

Fuel tank

150L

Hydraulic oil tank

120L

Engine oil

10L

Radiator

7.5L
