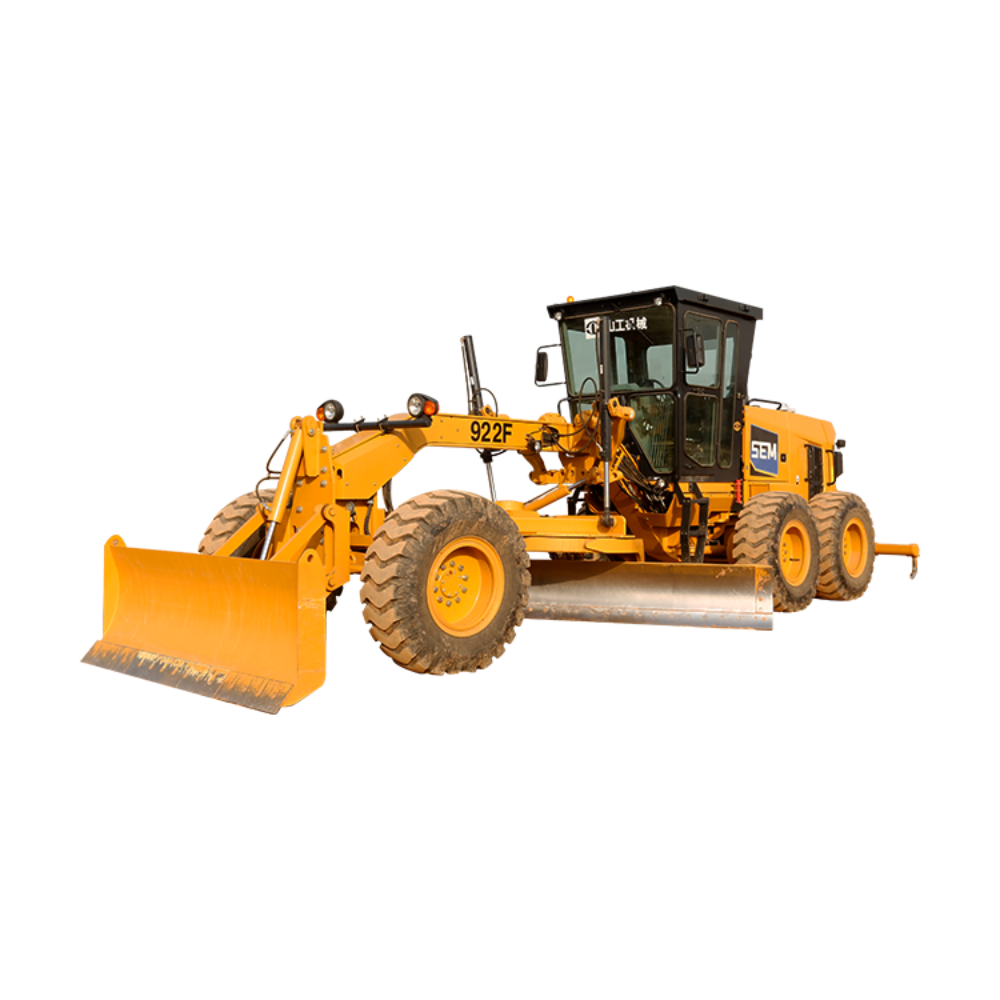

SEM 922F MOTOR GRADER
SEM 922F MOTOR GRADER
Regular price
$55,000.00 USD
Regular price
Sale price
$55,000.00 USD
Unit price
/
per
Couldn't load pickup availability
- Standard Weight (Non ROPS base): 16,313kg
- Max. Drawbar traction: 99kN
- Frame Articulation Angle: 20°
-
Model SEM 922F Main Specifications Standard Weight (Non ROPS base) 16,313kg Standard Weight (with ROPS) 16,640kg Overall Dimensions (L*W*H) 11,100*2,630*3,140mm Travel Speed (Forward/Reverse) 40km/25h Max. Drawbar traction 99kN Frame Articulation Angle 20° Min. Turning Radius 7,800mm Tire 17.5-25 12PR Engine Engine Manufacturer SDEC Engine Model SC9D220G2 Max. Torque 920N.m @ 1400RPM Net Power 162kW @ 2200RPM Emission Tier 2 Transmission Brand / Manufacturer Advance/HangChi Type Converter, Powershift Forward / Reverse Gears 6 Forward / 3 Reverse Tandem Axle Brand / Manufacturer SEM/Caterpillar Differential No-Spin Service Brake Air over oil, Disc Oscillation Front Up 15° Oscillation Front Down 25° Front Axle Ground Clearance 630mm Wheel Lean, Left / Right ±18° Max. Oscillation ±16° Steering Range, Left / Right ±47.5° Hydraulic System Circuit Type Load Sensing, PPPC Pump Type Variable Piston Moldboard Blade Width, Standard 4,279mm Blade Width, Optional 3,669/3,974mm Blade Height 610mm Blade Thickness 20mm Float Function YES Max. Cutting Depth 715mm Max. Lifting Height 475mm Service Refill Capacity Fuel Tank 280L Engine Oil 26L Coolant 50L Transmission 36L Differential Case 33L Tandem Case, Each Side 63L Circle Drive, Non Slip Clutch 2L Circle Drive, With Slip Clutch 7L Hydraulic Oil Tank 60L
