USED

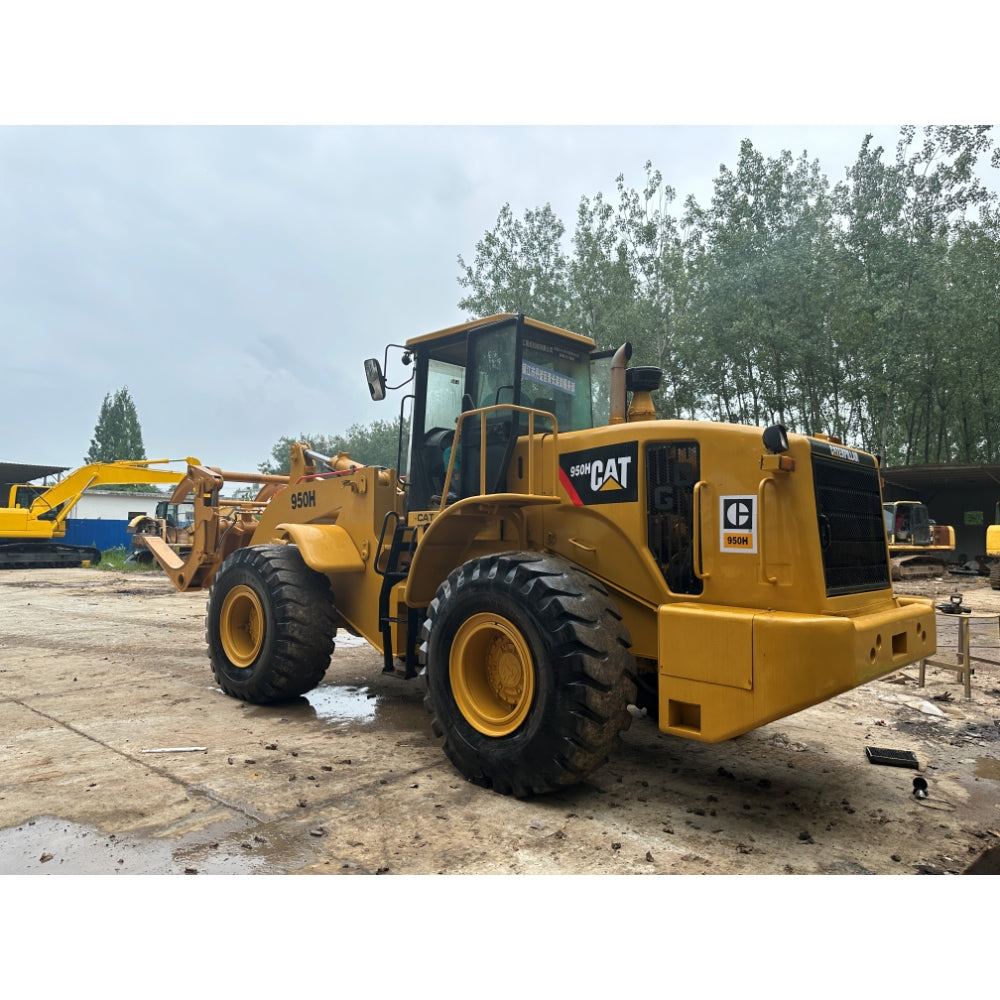

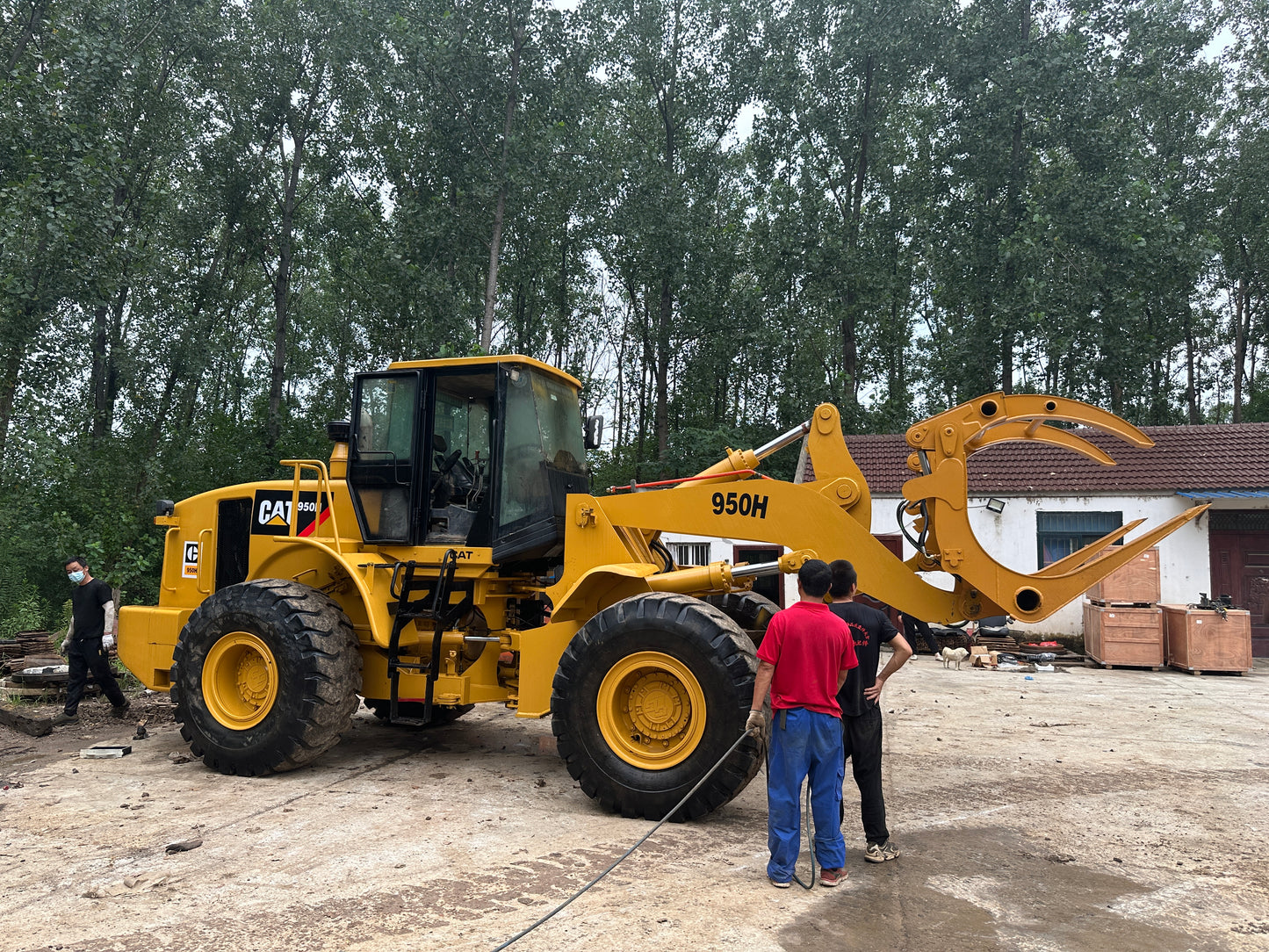

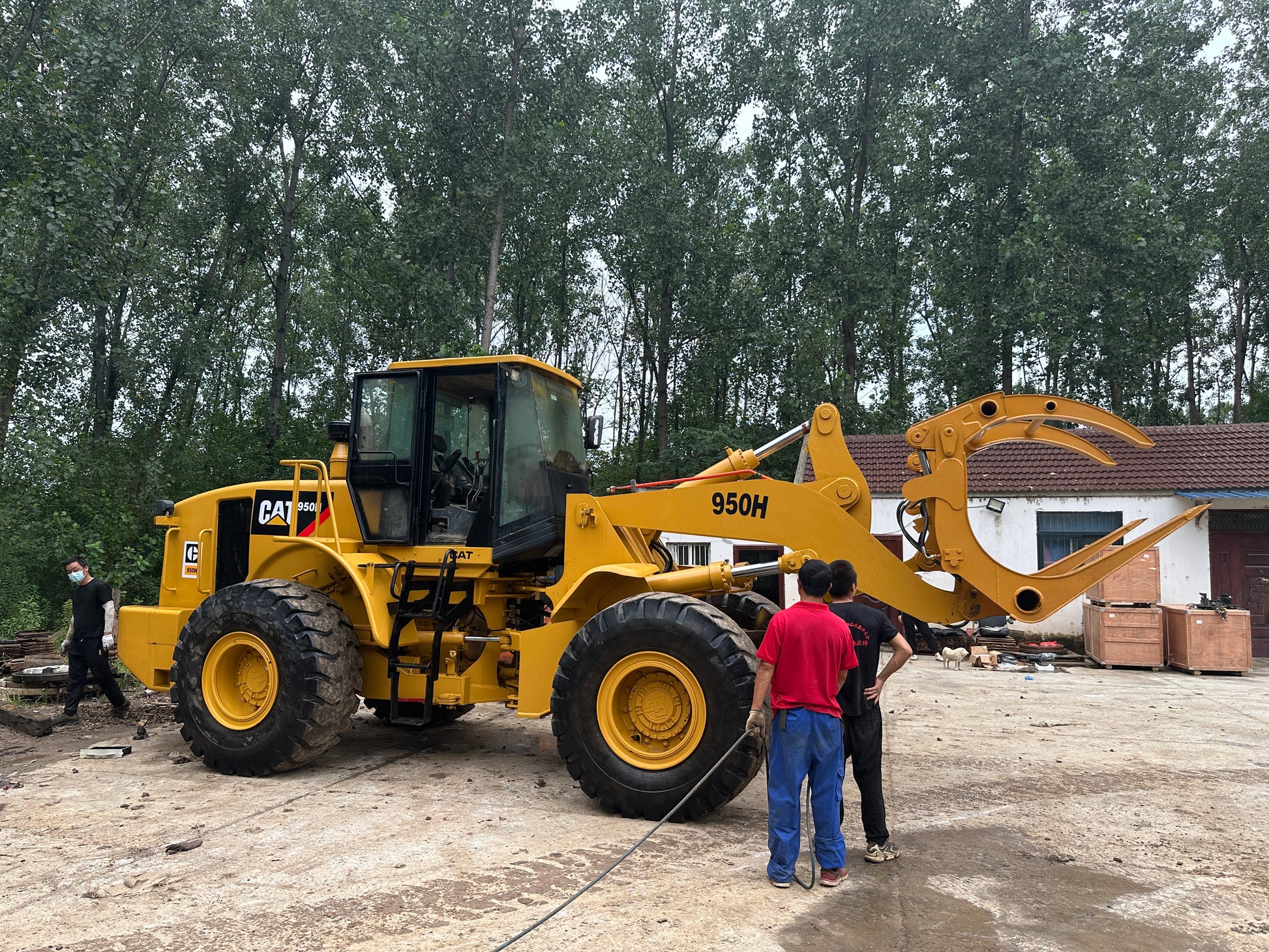

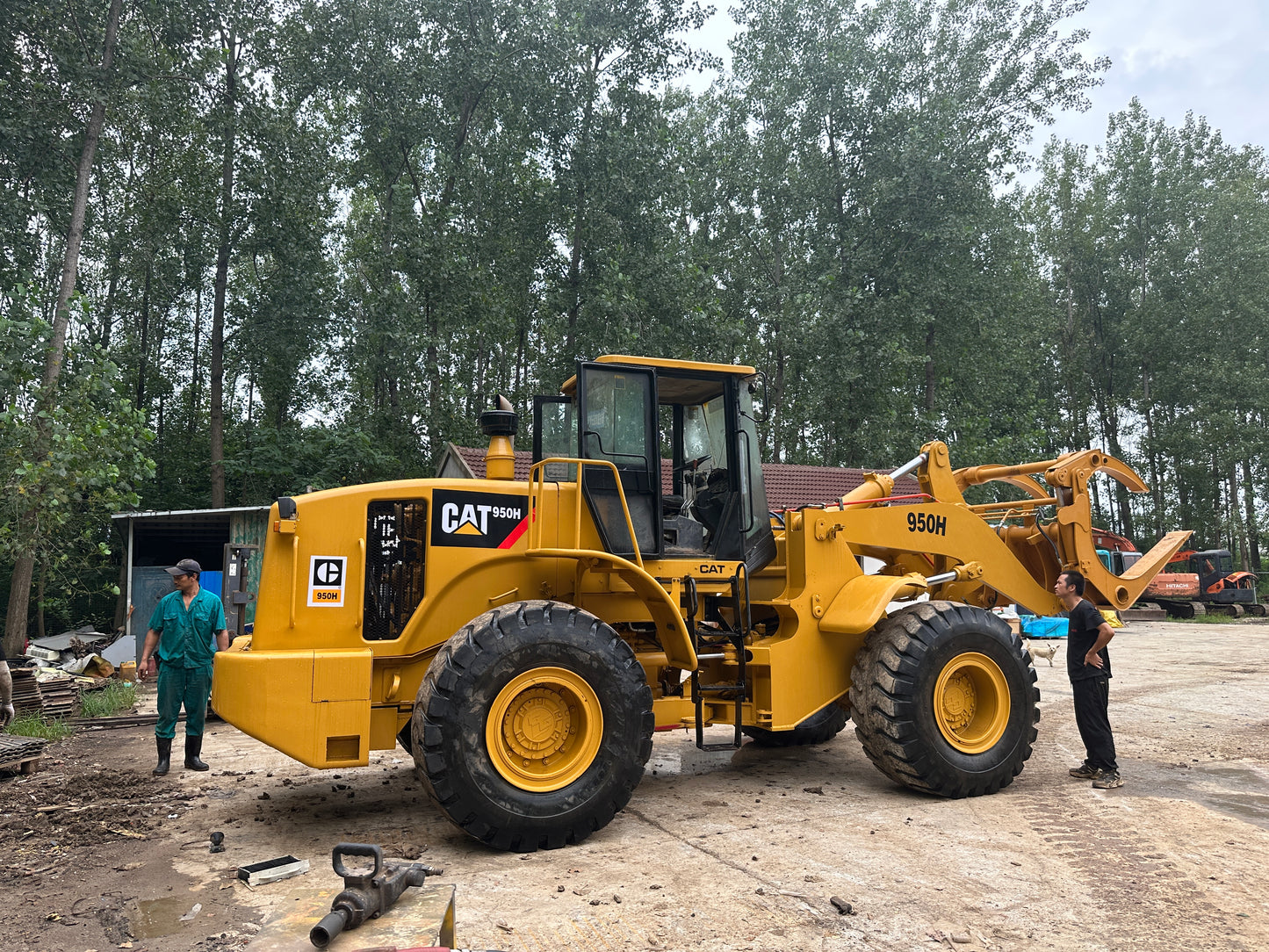

USED CAT 950H LOADER
USED CAT 950H LOADER
Regular price
$19,500.00 USD
Regular price
Sale price
$19,500.00 USD
Unit price
/
per
Couldn't load pickup availability
Dump Clearance At Max Raise
2922mm
Bucket Capacity - Struck
2.65m3
Breakout Force
165kN
Bucket Width
2927mm
Bucket Capacity - Heaped
3.1m3
Dimensions
E
Ground Clearance
411.48mm
A
Length With Bucket On Ground
7988mm
B
Width Over Tires
2784mm
C
Height To Top Of Cab
3452mm
D
Wheelbase
3350mm
F
Hinge Pin - Max Height
3992mm
H
Reach At Max Lift And Dump
1202mm
Rack Back - Ground
38.5 degrees
Rack Back - Maximum Lift
59.5 degrees
Wheel Base
3.35m
Height - Center Line Of Axle
0.75m
B-Pin Height - Carry - Standard
0.46m
B-Pin Height - High-Lift
4.49m
B-Pin Height - Standard
4m
Centerline Of Rear Axle To Hitch
1676.4mm
Centerline Rear Axle To Edge Of Counterweight
1.96m
Dump Angle At Maximum Lift
48.2degrees
B-Pin Height - Carry - High-Lift
0.6m
Height - Top Of Exhaust Pipe
3368.04mm
Height - Top Of Hood
2462.79mm
Height - Top Of Rops
3.45m
Rack Back - Carry
45 degrees
Specifications
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
C7 ACERT
Net Power
147kw
Gross Power
162kw
Power Measured @
1800rpm
Max Torque
907Nm
Displacement
7.2L
Bore
110mm
Stroke
127mm
Net Power - Iso 9249
147kw
Net Power - Sae J1349
145.5kw
Net Power - 80/1269/Eec
147kw
Gross Power - Sae J1995
161.9kw
Engine Model
Cat? C7 ACERT?
Flywheel Power
147kw
Peak Torque - 1,400 Rpm - Net
907.1Nm
