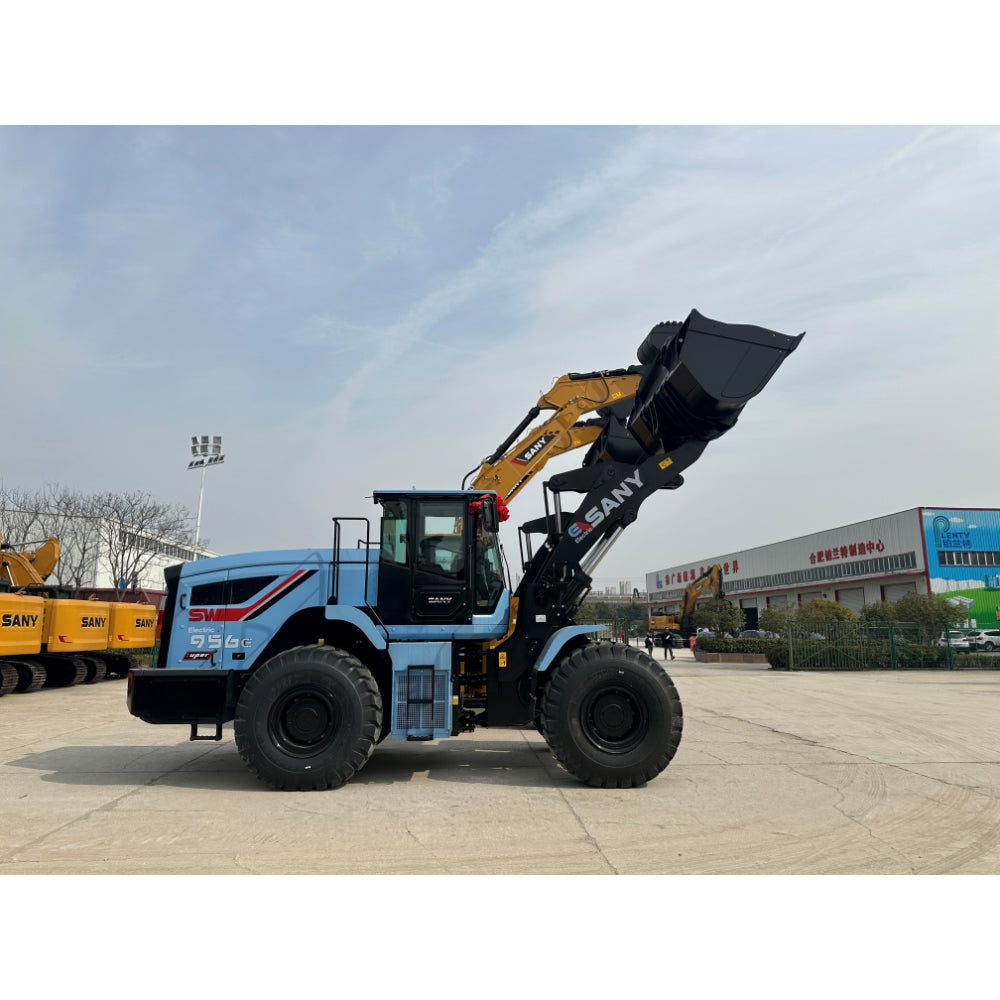

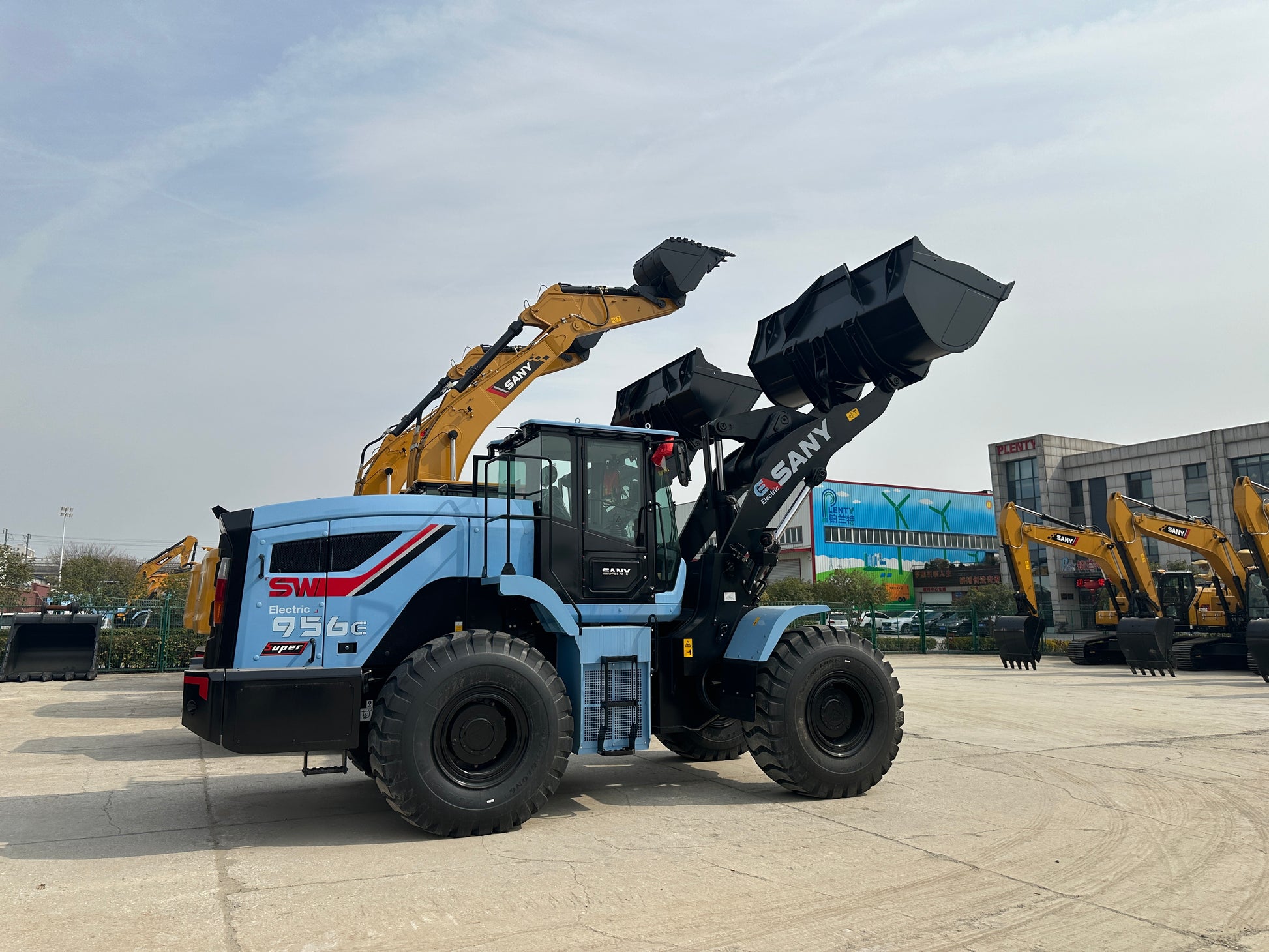

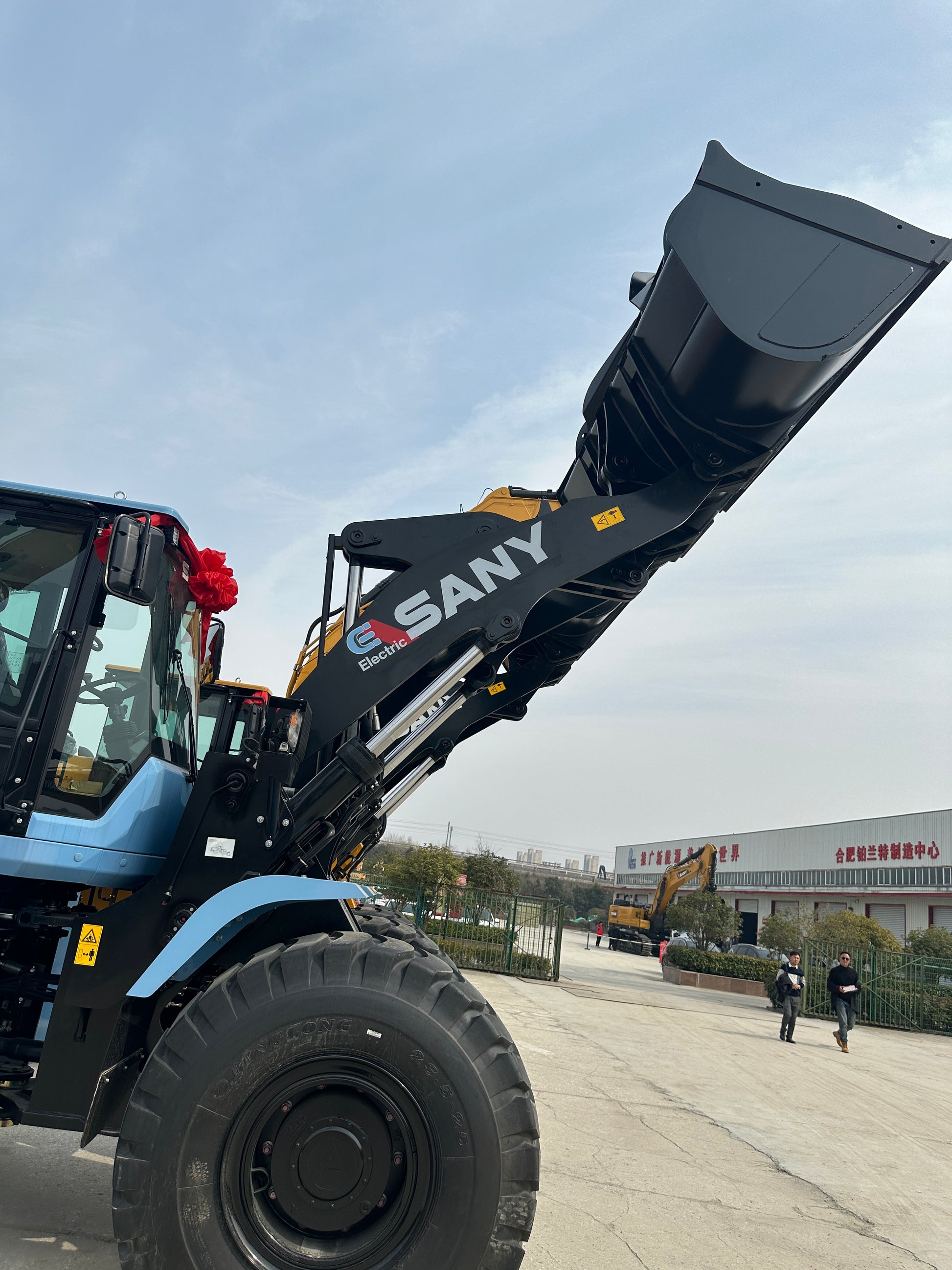

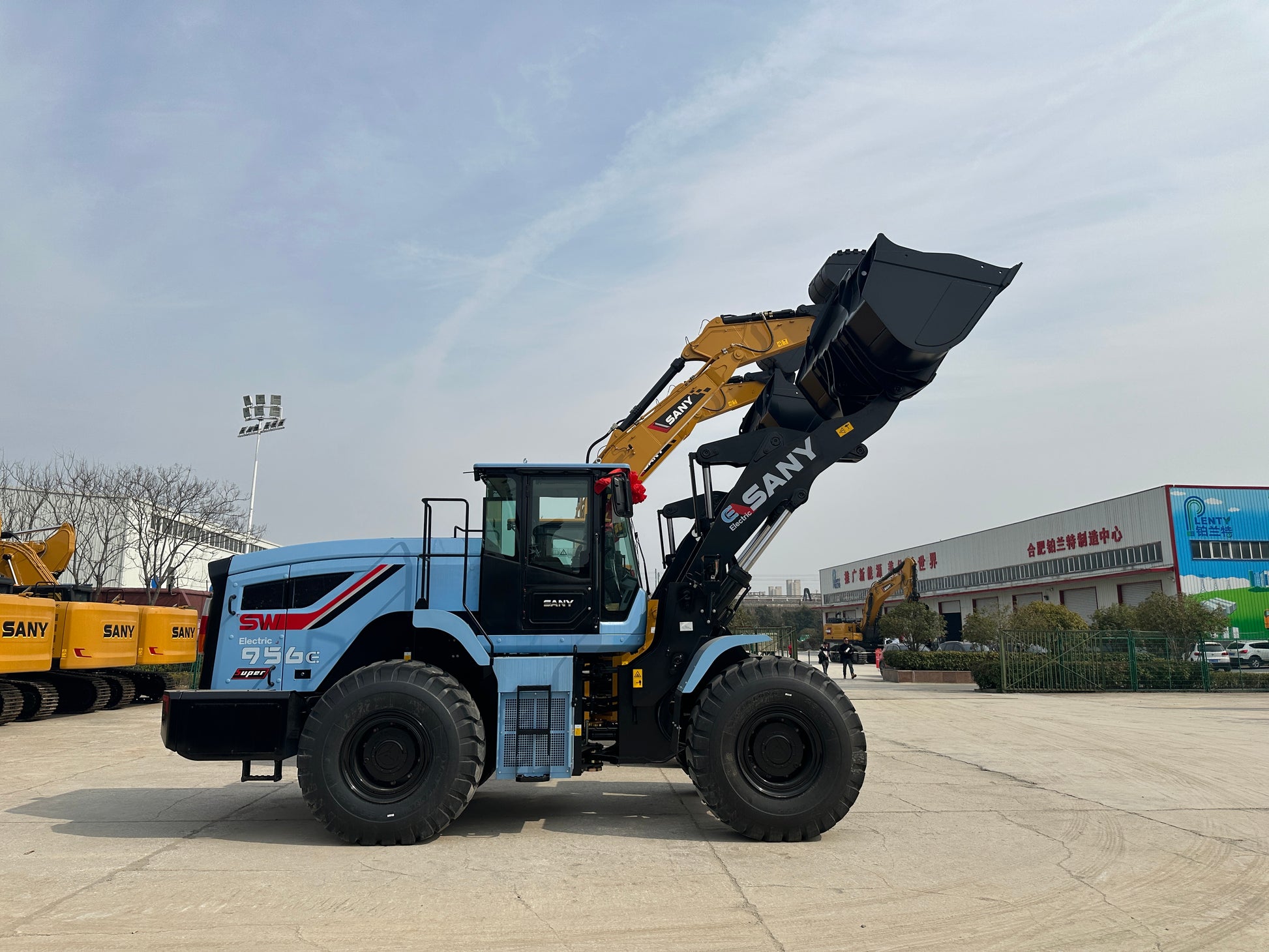

USED SANY SW956E LOADER

I. Basic Performance

• Rated Load: 5800kg
• Total Machine Weight: 19000kg
• Bucket Capacity: 3.5m³
• Dumping Height: 3345mm
• Dumping Distance: 1220mm
• Maximum Tractive Force: 180kN
• Maximum Tipping Force: 182kN

III. Operating Device Movement Time

• Sum of Three Movements: 10.5s

IV. Overall Dimensions

• Overall Length: 8560mm
• Overall Width: 2845mm
• Overall Height: 3560mm
• Wheelbase: 3400mm

V. Walking System

• Walking Mode: Tire-type
• Motor Type: High-power Permanent Magnet Synchronous Motor
• Instant Torque: 2400Nm

VI. Intelligent Control

The entire machine adopts an intelligent control system, which can automatically adjust power output based on conditions such as load and vehicle speed. It features quick power response and high efficiency.
