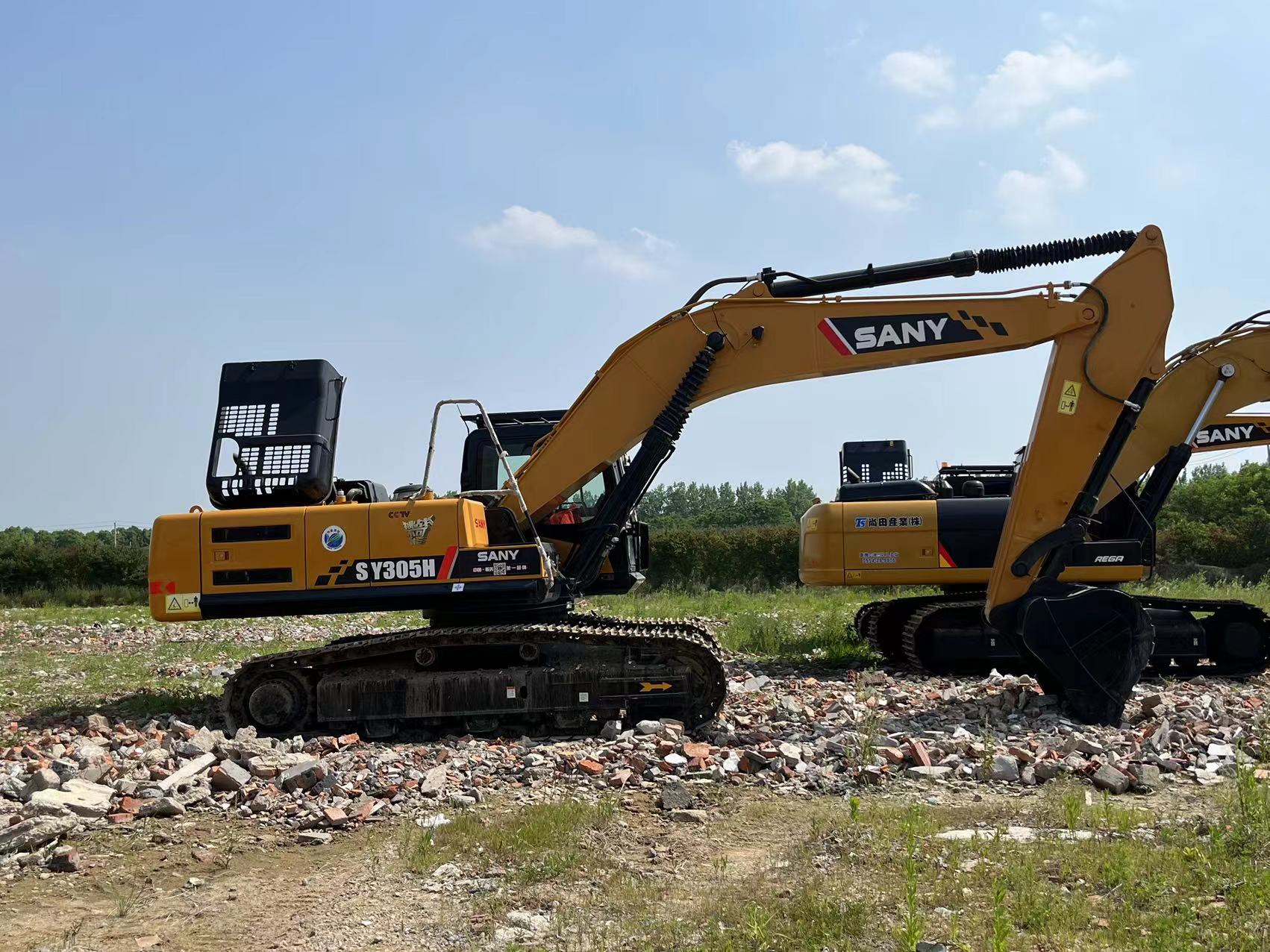

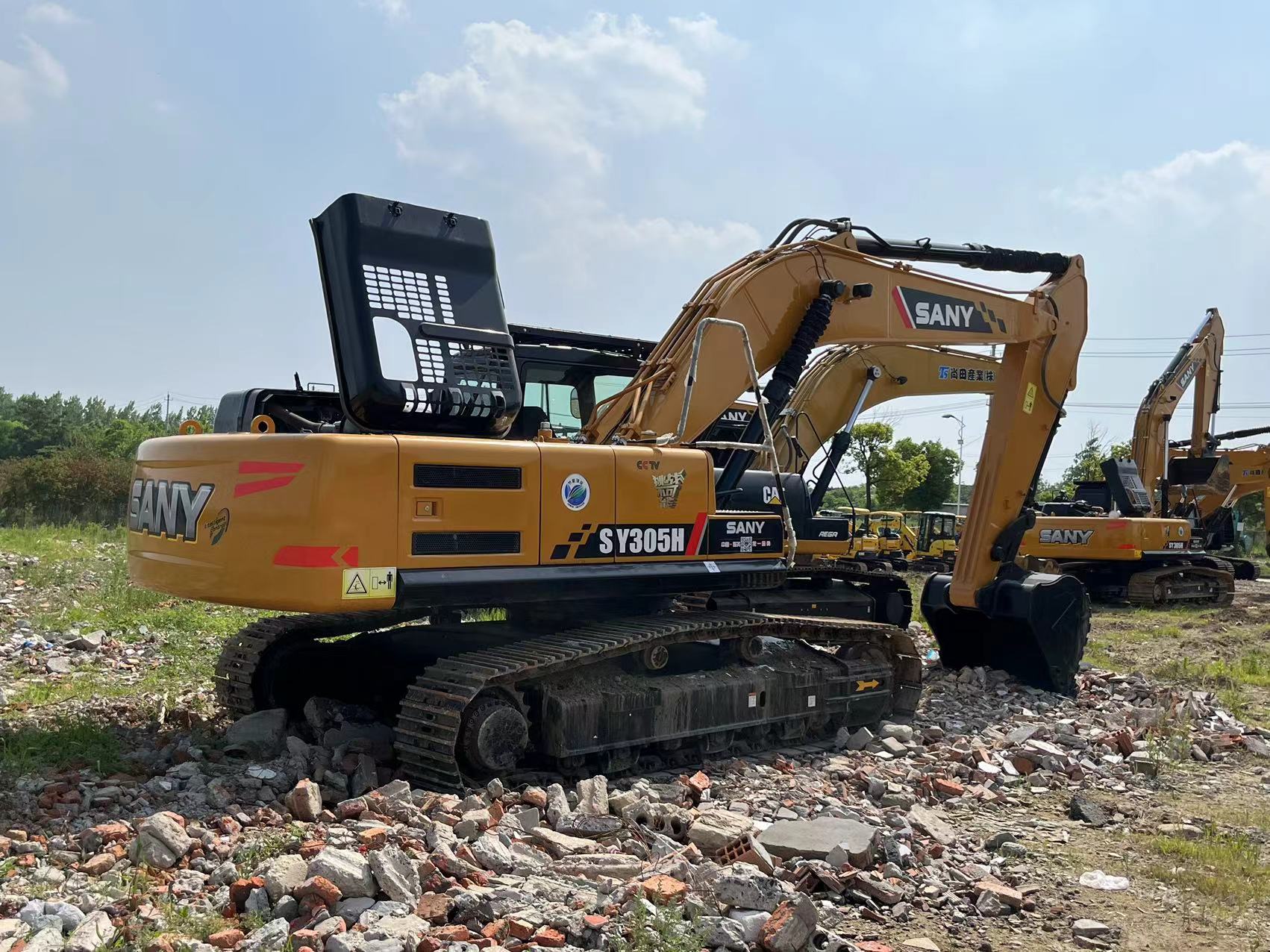

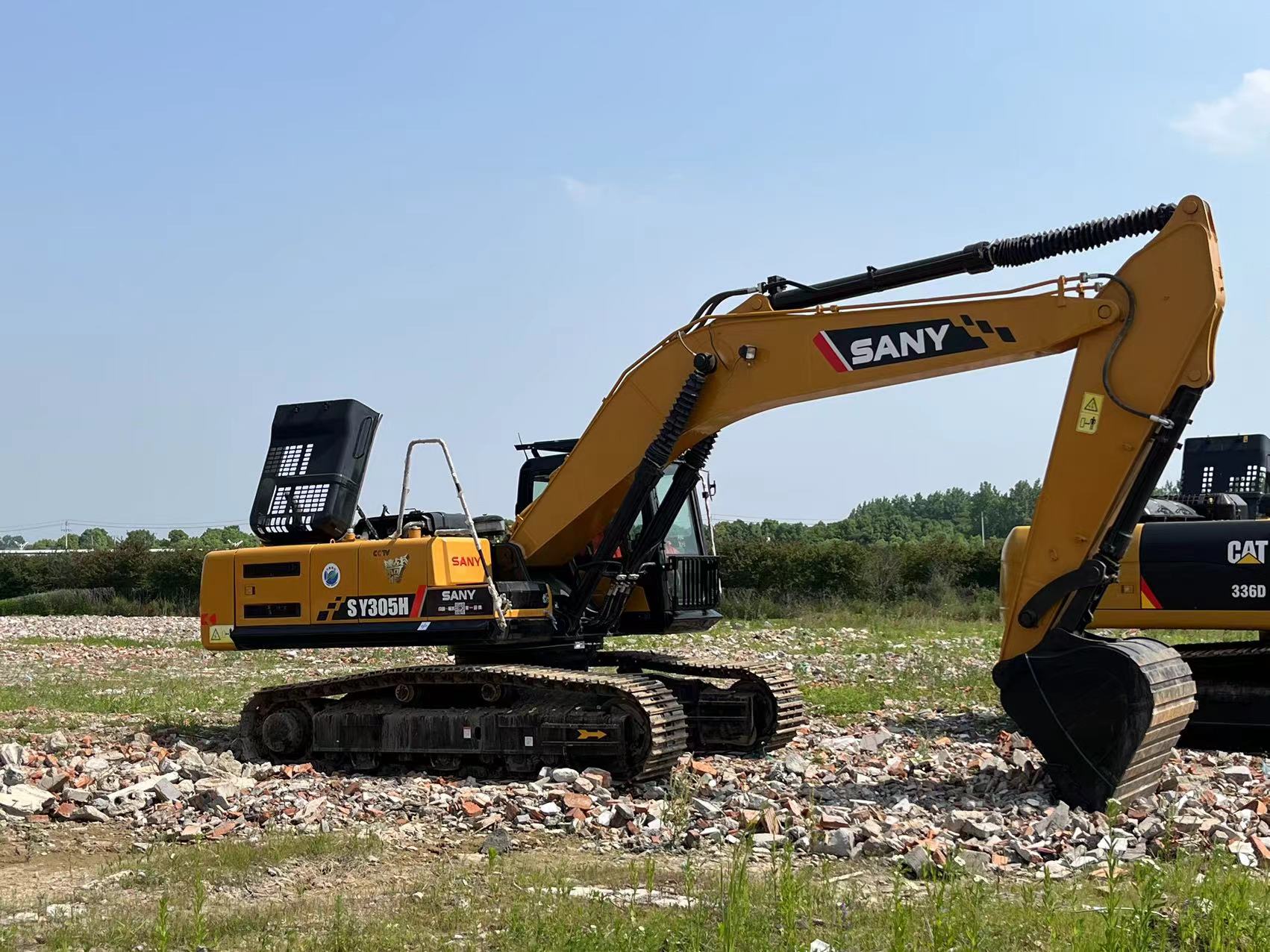

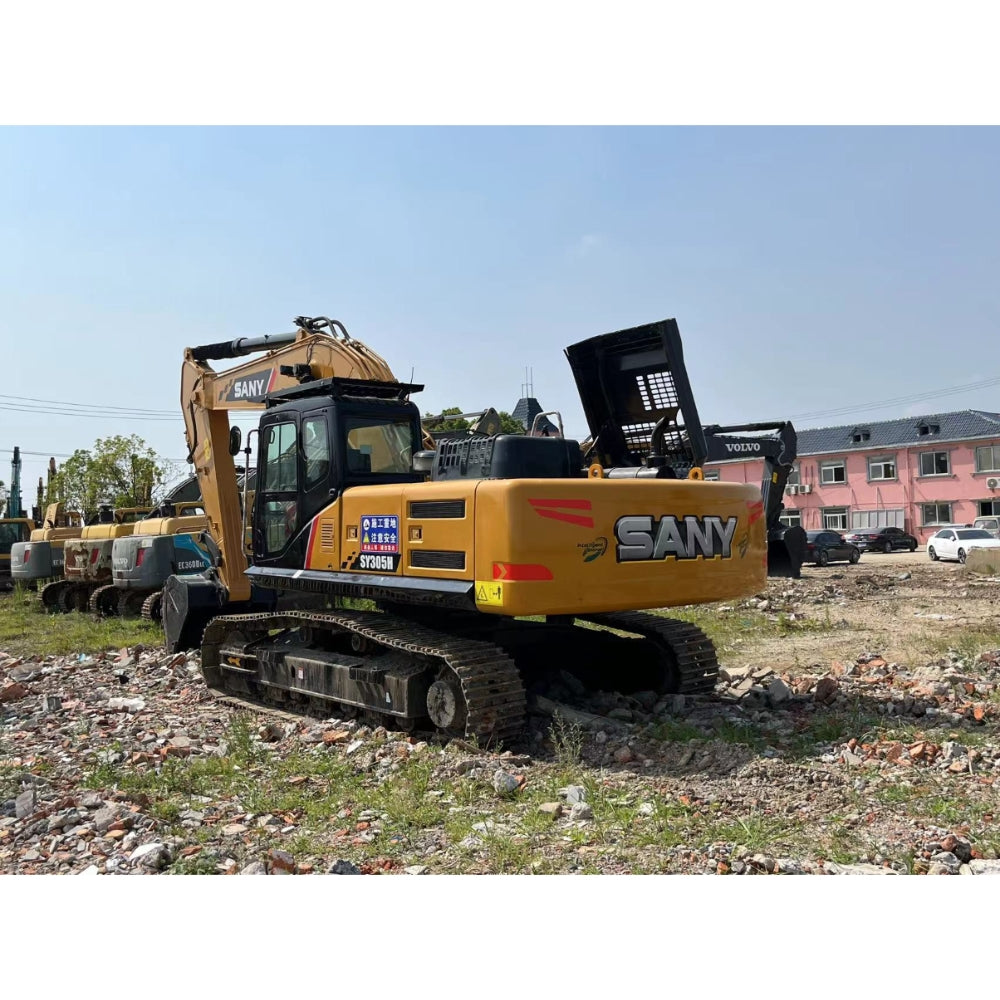

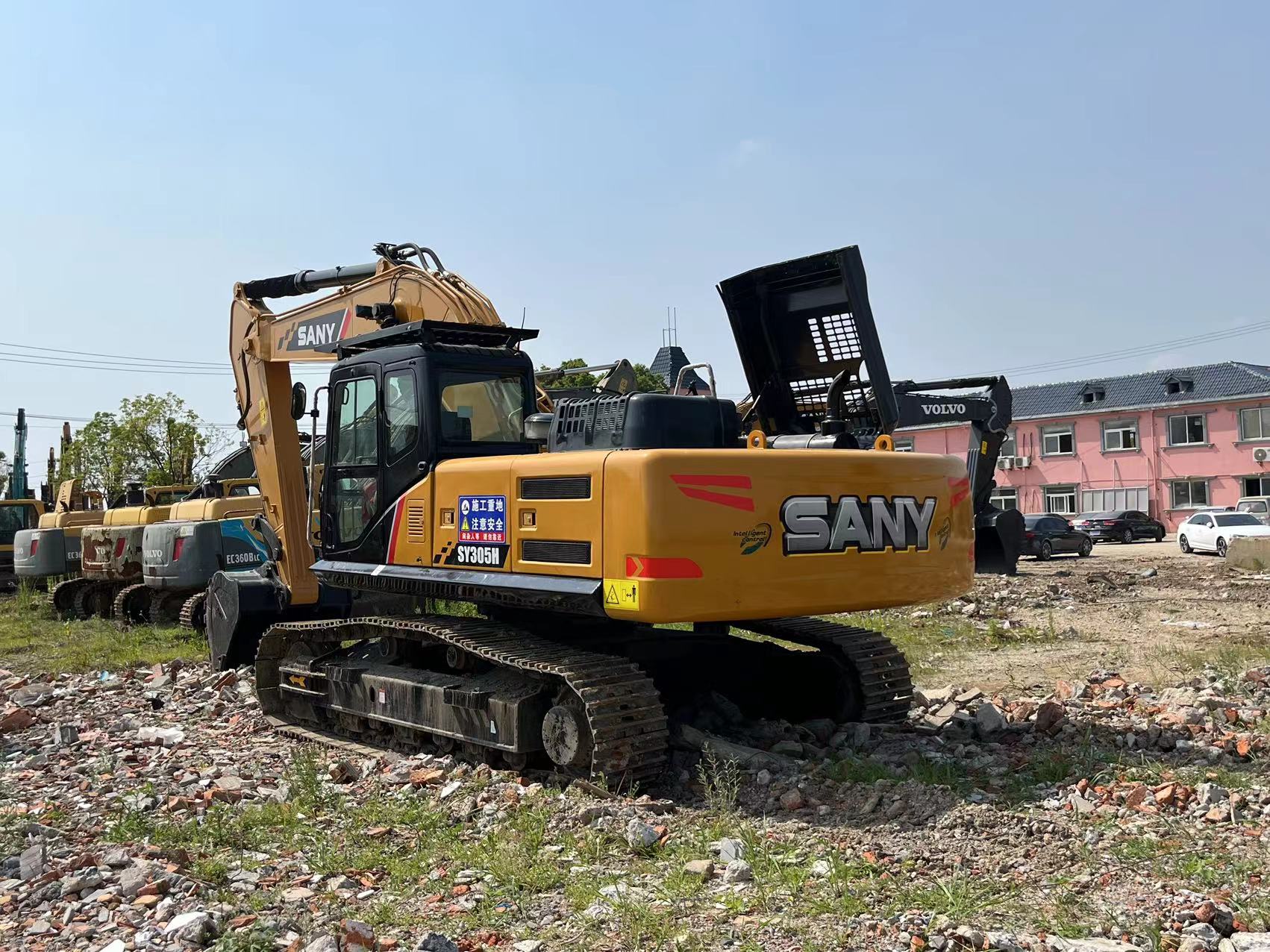

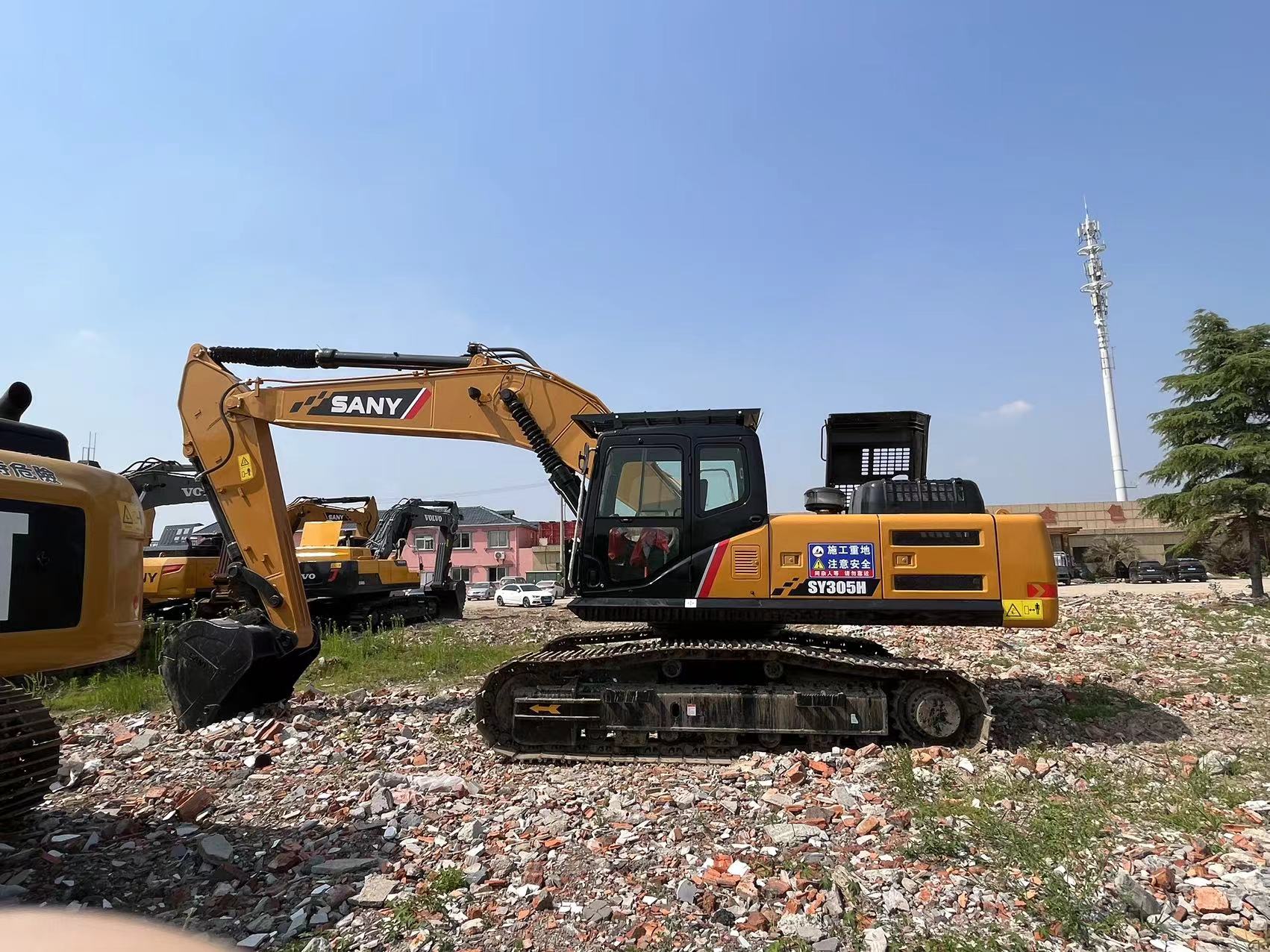

USED SANY SY305H EXCAVATOR

I. Basic Specifications

• Model: SY305H
• Tonnage: 30-ton class (30-50 tons)
• Operating Weight: 31,500 kg
• Bucket Type: Backhoe
• Application: Mining
• Power Type: Fuel

II. Engine Parameters

• Emission Standard: China IV
• Configuration: 4-stroke, water-cooled, direct injection, turbocharged
• Rated Power: 212 kW / 2,000 rpm
• Maximum Torque: 1,080 N·m (at a specific RPM)
• Displacement: 7.79 L
• Number of Cylinders: 6 cylinders

III. Performance Parameters

• Traveling Speed: High speed 5.4 km/h, Low speed 3.2 km/h
• Slewing Speed: 9.0 rpm
• Gradeability: 70% (35°)
• Ground Pressure: 60.3 kPa
• Bucket Digging Force: 204 kN
• Arm Digging Force: 153 kN

IV. Dimensions

• Overall Length (for Transportation): 10,667 mm
• Overall Width: 3,190 mm
• Overall Height (for Transportation): 3,470 mm
• Cab Full Height: 3,280 mm
• Upper Structure Width: 3,175 mm
• Standard Track Plate Width: 600 mm
• Track Gauge: 2,590 mm
• Minimum Ground Clearance: 550 mm
• Tail Swing Radius: 3,315 mm
• Track Ground Contact Length: 3,916 mm
• Total Track Length: 4,840 mm
