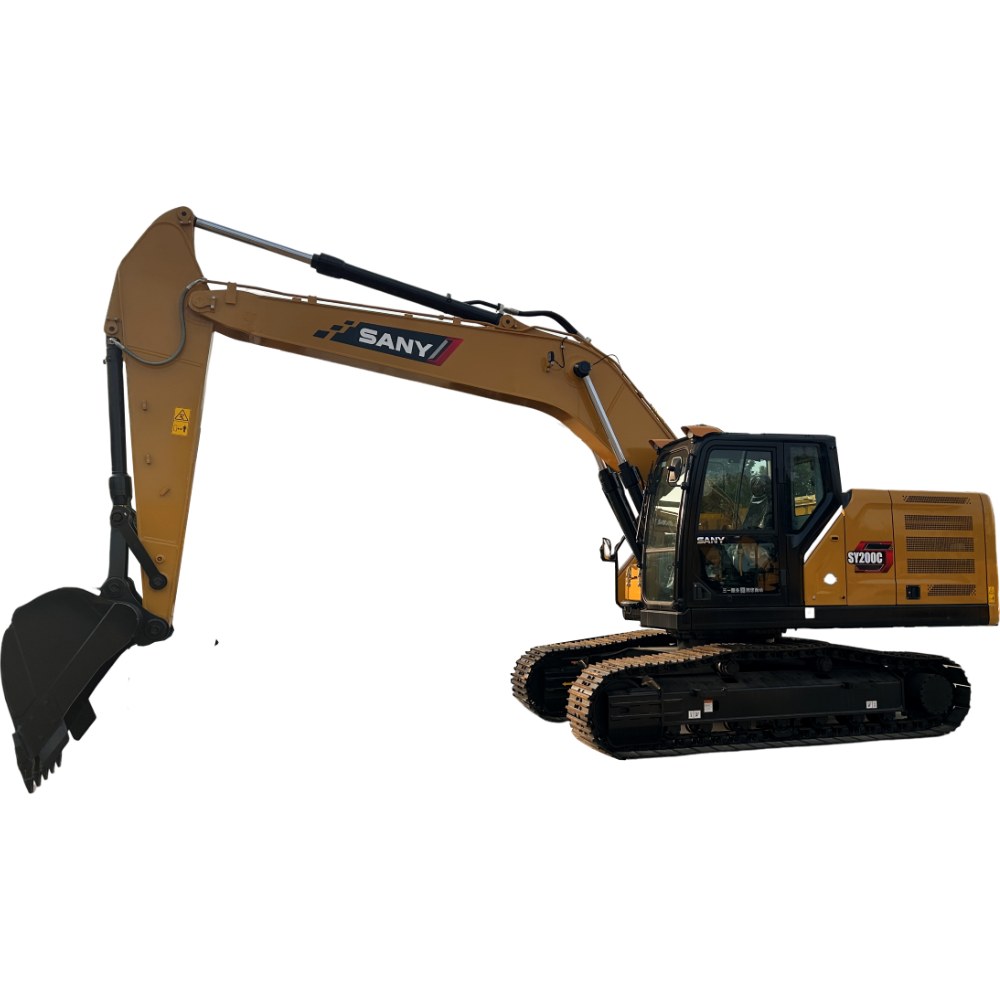

SANY SY200C EXCAVATOR

Technical parameters of Sany Heavy Industry SY200CSIC medium-sized hydraulic excavator

Overall dimensions Total length (during transportation) 9680mm

Total width 2800mm

Total height (during transportation) 3440mm

Upper width 2870mm

Standard track shoe width 600mm

Minimum ground clearance 440mm

Tail turning radius 3730mm

Track ground length 3360mm
Track length 4160mm

Overall weight 21500kg

Bucket capacity 0.8-1.0 (0.93) m³

Rated power 118/2000kW/rpm

Travel speed (high/low) 5.4/3.4km/h

Slewing speed 11rpm

Gradability 70%

Ground pressure ratio 47.4kPa

Bucket digging force 138kN

Arm digging force 103kN
