USED

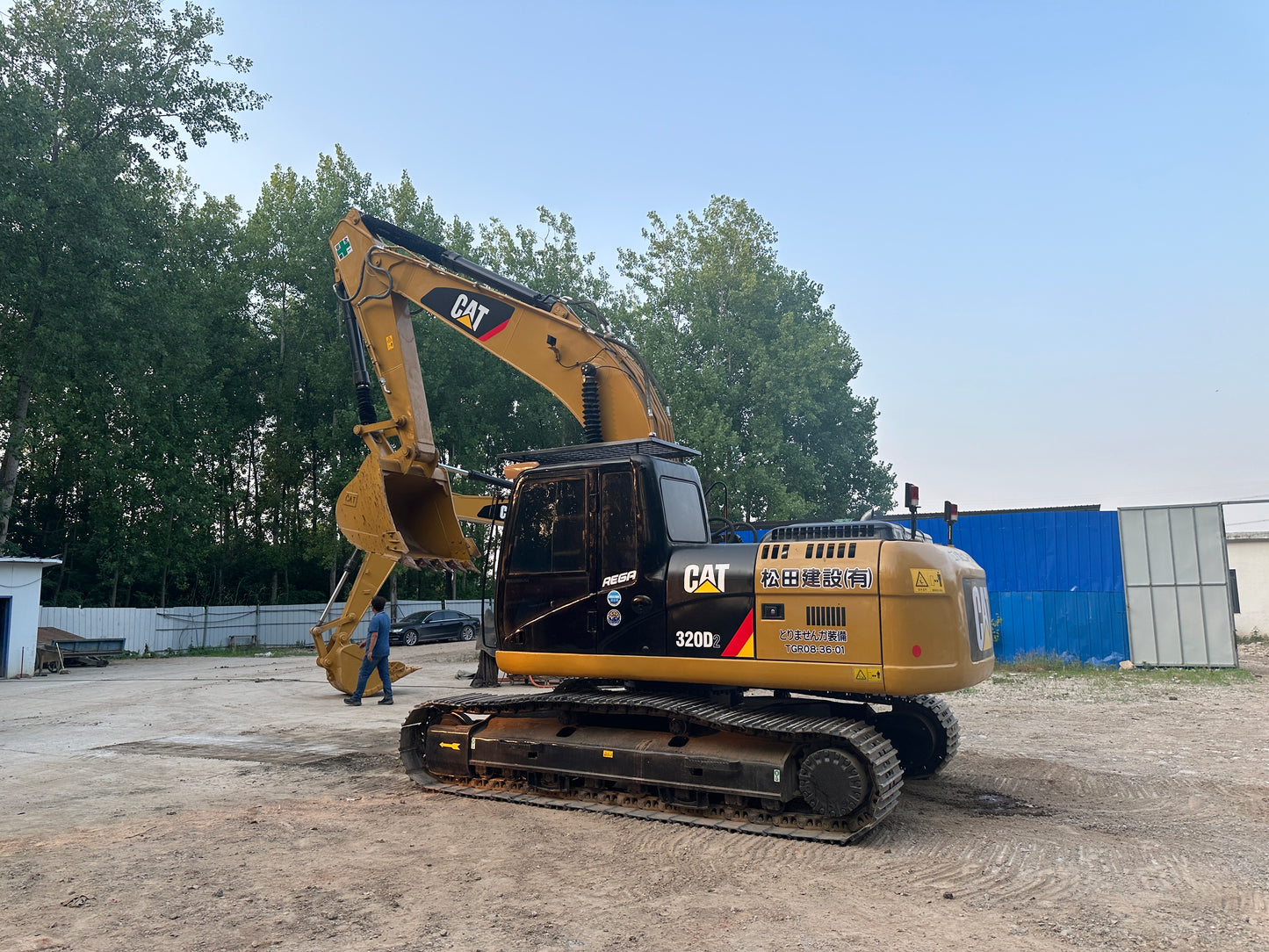

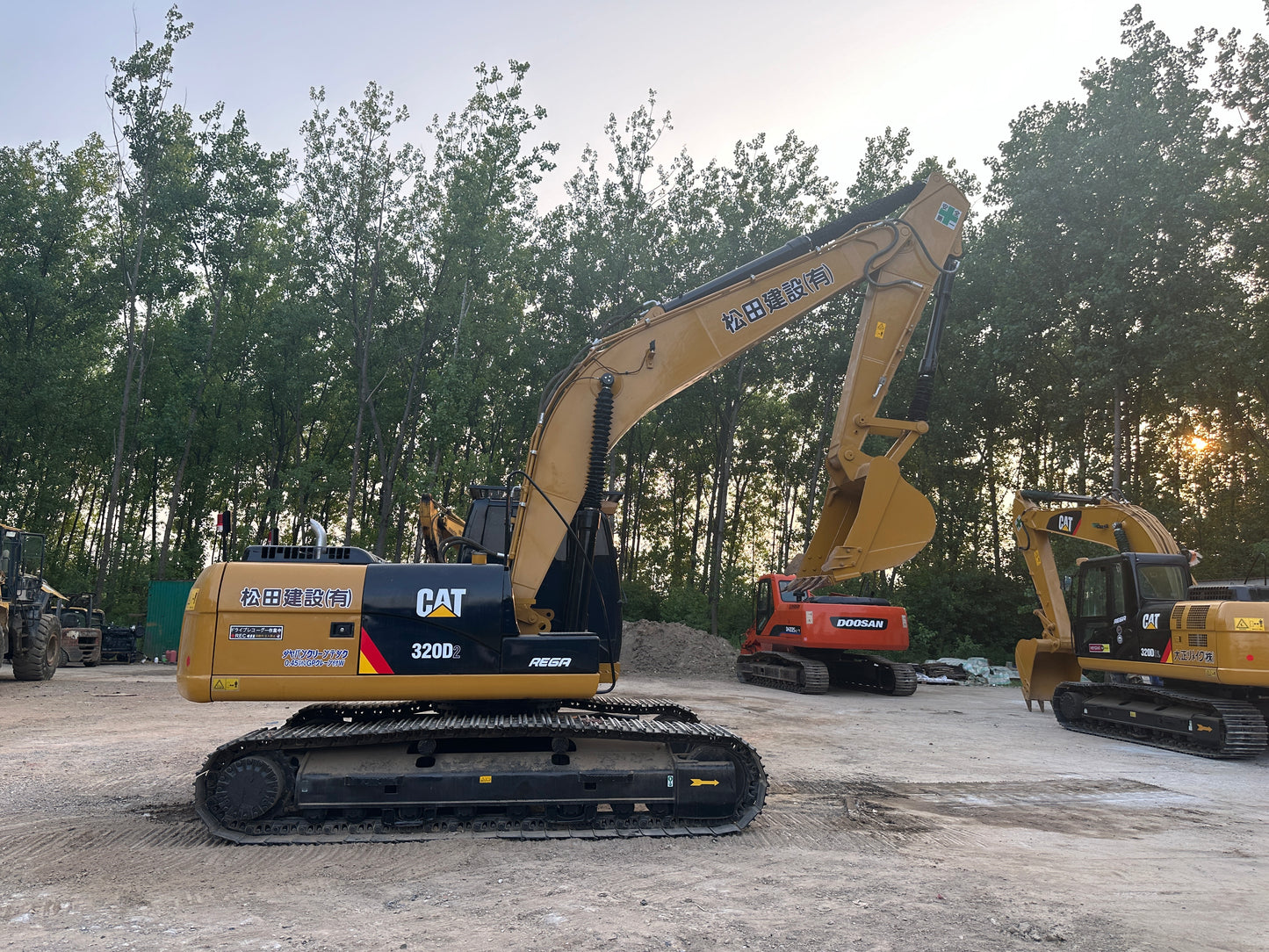

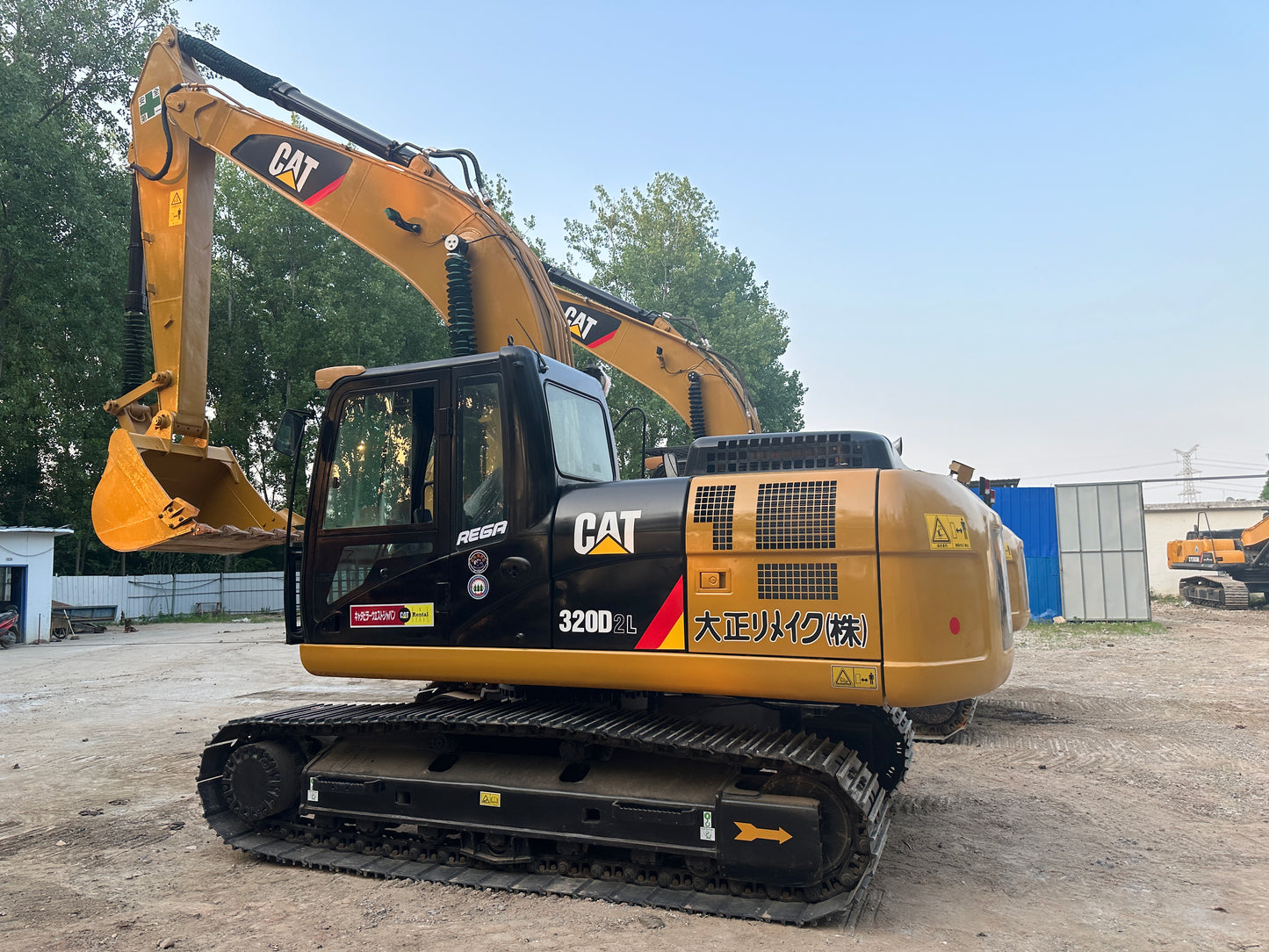

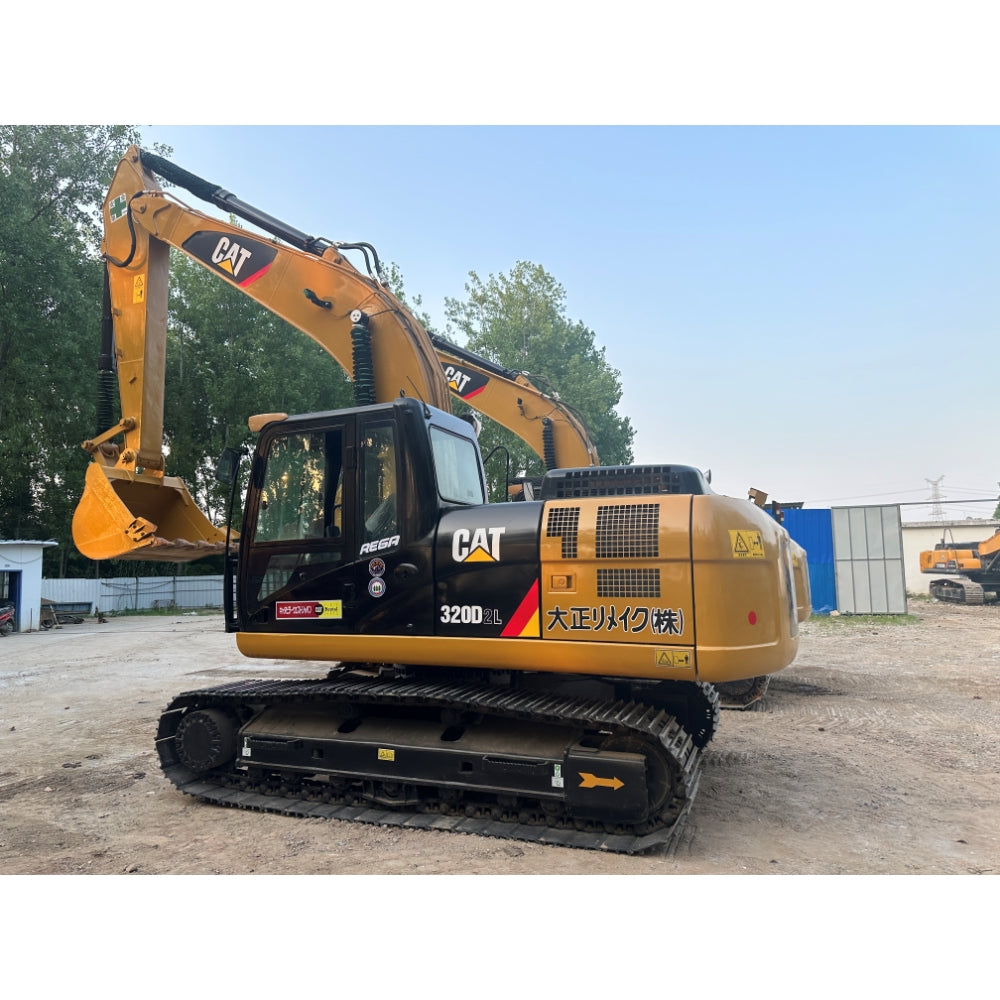

USED CAT 320D EXCAVATOR
USED CAT 320D EXCAVATOR
Обычная цена
$23,000.00 USD
Обычная цена
Цена со скидкой
$23,000.00 USD
Цена за единицу
/
за
Не удалось загрузить сведения о доступности самовывоза
About the Cat 320 Hydraulic Excavator
The Cat® 320 excavator brings premium performance with simple-to-use technologies like Cat GRADE with 2D, Grade Assist, and Payload - all standard equipment from the factory to boost your operator efficiencies up to 45%. Combine these features with a new cab, longer maintenance intervals that lower your maintenance costs up to 15%, and a power system that reduces fuel consumption by up to 25% and you have a low-cost-per-unit-of-production excavator that's perfect for medium- to heavy-duty applications.
Specifications
Working Ranges - Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick
| Bucket Digging Force (ISO) | 10.1 ft |
| Stick Digging Force (SAE) | 12 ft |
| Maximum Cutting Height | 30.7 ft |
| Maximum Depth Cut for 2440 mm (8'0") Level Bottom | 21.5 ft |
| Maximum Digging Depth | 22 ft |
| Maximum Loading Height | 21.3 ft |
| Maximum Reach - Ground Level | 32.3 ft |
| Maximum Vertical Wall Digging Depth | 17 ft |
| Minimum Loading Height | 7.1 ft |
Engine
| Net Flywheel Power | 162 HP |
| Bore | 4 in |
| Stroke | 5 in |
| Displacement | 269 in³ |
| Gross Power - SAE J1995 | 164 HP |
| Net Power - SAE J1349 | 162 HP |
| Engine RPM - Operation | 1650 r/min |
| Engine RPM - Travel | 1800 r/min |
Weights
| Operating Weight - North America | 49600 lb |
| Operating Weight - Europe/Australia & New Zealand | 48300 lb |
Service Refill Capacities
| Fuel Tank Capacity | 86.6 gal (US) |
| Cooling System | 6.6 gal (US) |
| Engine Oil | 4 gal (US) |
| Final Drive - Each | 1.3 gal (US) |
| Hydraulic System - Including Tank | 61.8 gal (US) |
| Hydraulic Tank | 30.4 gal (US) |
| DEF Tank | 10.3 gal (US) |
| Swing Drive - Each | 1.3 gal (US) |
Swing
| Maximum Swing Torque | 54440 ft·lbf |
| Swing Speed | 11.25 r/min |
Drive
| Maximum Drawbar Pull | 46311 lbf |
| Maximum Travel Speed | 3.5 mile/h |
Hydraulic System
| Main System - Maximum Flow - Total | 113 gal/min |
| Maximum Pressure - Equipment - Normal | 5075 psi |
| Maximum Pressure - Swing | 3886 psi |
| Maximum Pressure - Travel | 4974 psi |
Dimensions - Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick
| Counterweight Clearance | 3.4 ft |
| Shipping Height | 9.7 ft |
| Shipping Length | 31.3 ft |
| Track Gauge | 7.8 ft |
| Track Length | 12 ft |
| Transport Width - 600 mm (24 in) Shoes | 9.8 ft |
| Transport Width - 790 mm (31 in) Shoes | 10.4 ft |
Dimensions - Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick
| Ground Clearance | 1.5 ft |
| Tail Swing Radius | 9.3 ft |
