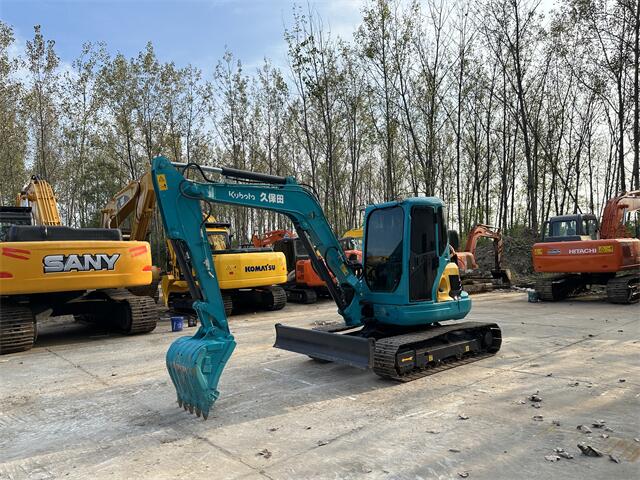

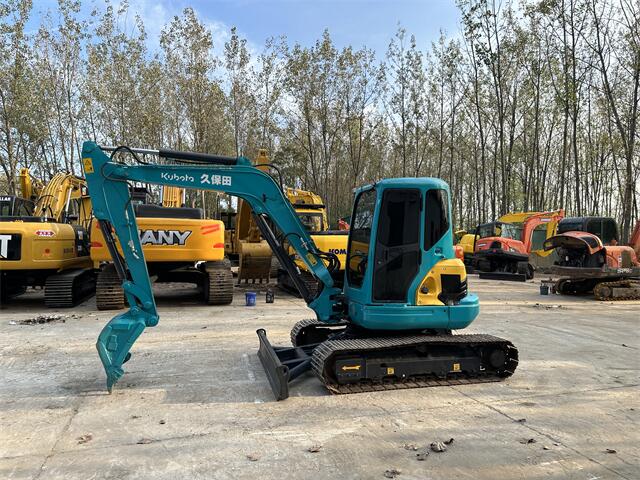

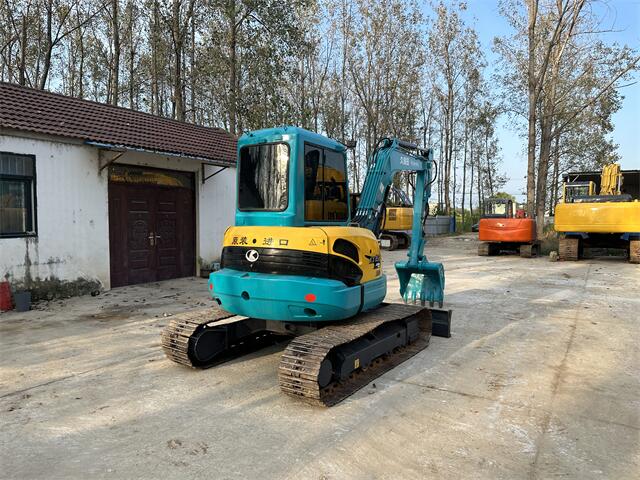

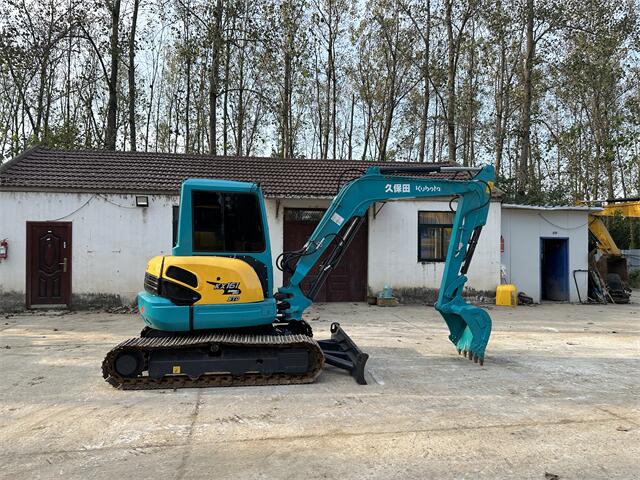

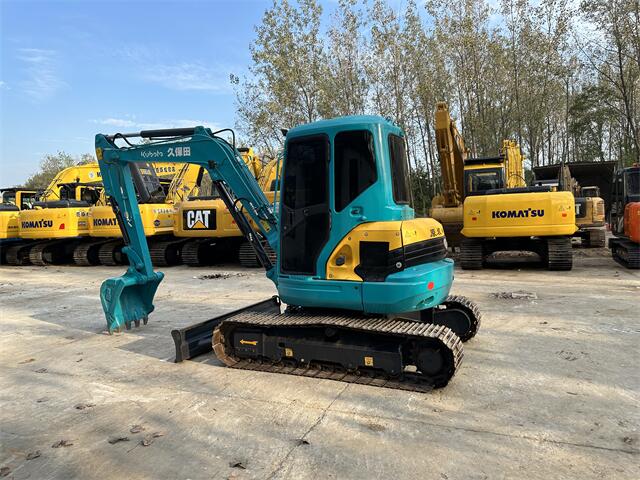

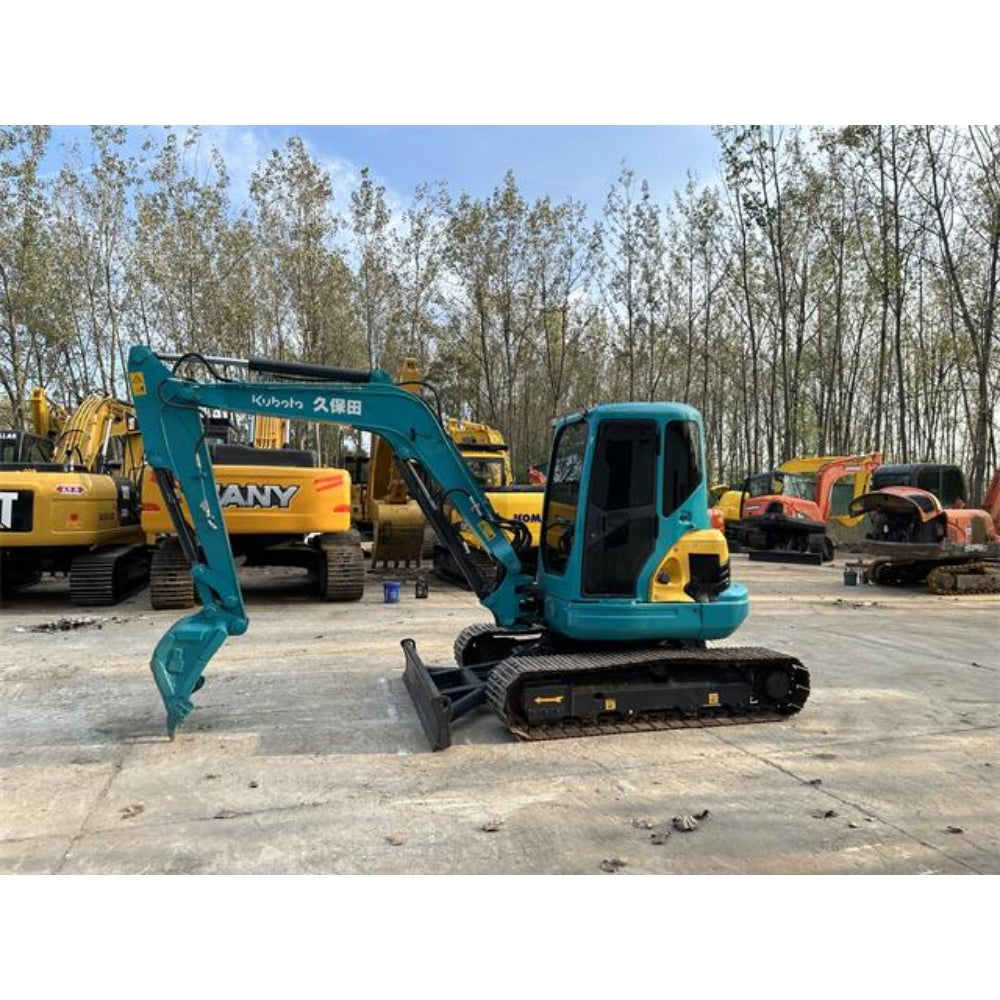

USED KUBOTA KX161 EXCAVATOR

1、engine system

Engine Model: Kubota V2403-M
Rated Power: 34.6kW (47 hp) / 2200rpm
Displacement: 2.434L (2434mL)
Cooling Method: Water-cooled

2、performance

Operating Weight: 5675kg
Bucket Capacity: 0.22m³
Fuel Tank Capacity: 70L
Traveling Speed (High/Low): 2.5/4.6 km/h
Slewing Speed: 9.3 rpm
Climbing Ability: 30%
Bucket Digging Force: 39.8 kN

3、size

Length × Width × Height (in Transportation State): 5540 × 2110 × 2540mm
Total Track Length: 2500mm
Track Plate Width: 550mm
Total Track Width: 2110mm
Track Gauge: 1560mm
Minimum Ground Clearance: 320mm
Minimum Swing Radius (Front Equipment): 2420/1955mm (When Swinging)
Rear Swing Radius: 1090mm

4、working range

Maximum Digging Radius: 6290mm
Maximum Digging Depth: 3860mm
Maximum Digging Height: 5770mm
Maximum Dumping Height: 4125mm
Maximum Vertical Digging Depth: 2995mm
Boom Swing Angle (Left/Right): 50/80°

5、other features

Tailless Small Swing Structure: Allows the upper part of the machine to rotate without the tail exceeding the vehicle width, suitable for operating in narrow spaces.
Standard Bulldozer Blade: Convenient for land leveling and other operations.
Boom Side Shift Device: Increases operational flexibility.
Intelligent Control System: Provides digital display and simple registration functions, facilitating operation and management.
Security and Anti-theft: Adopts a unique single-key system, enhancing the machine's security.
