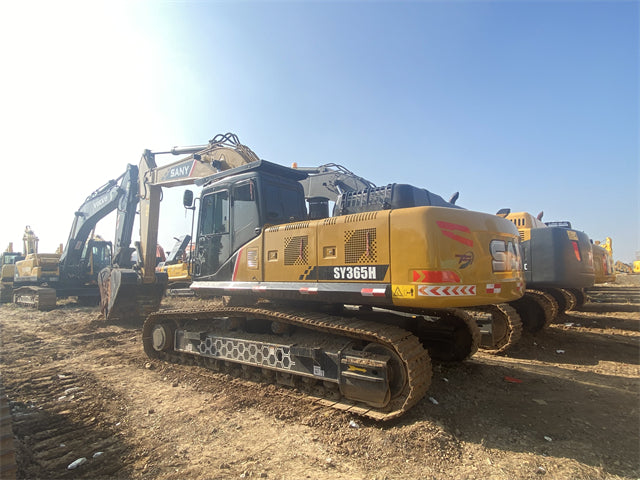

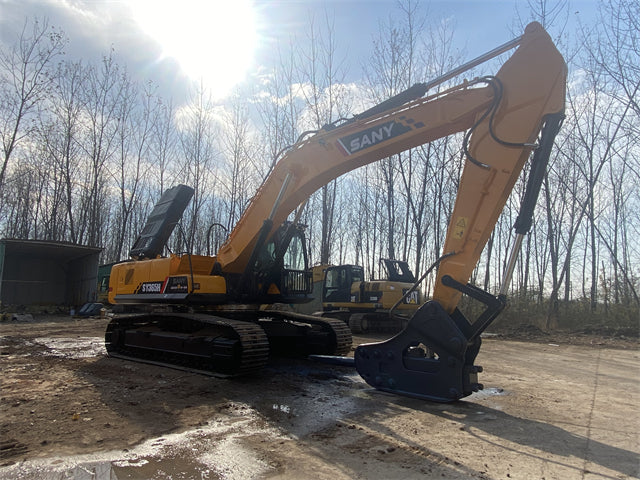

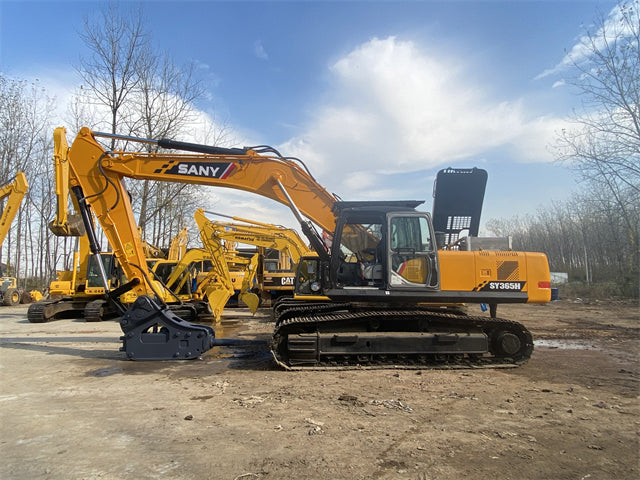

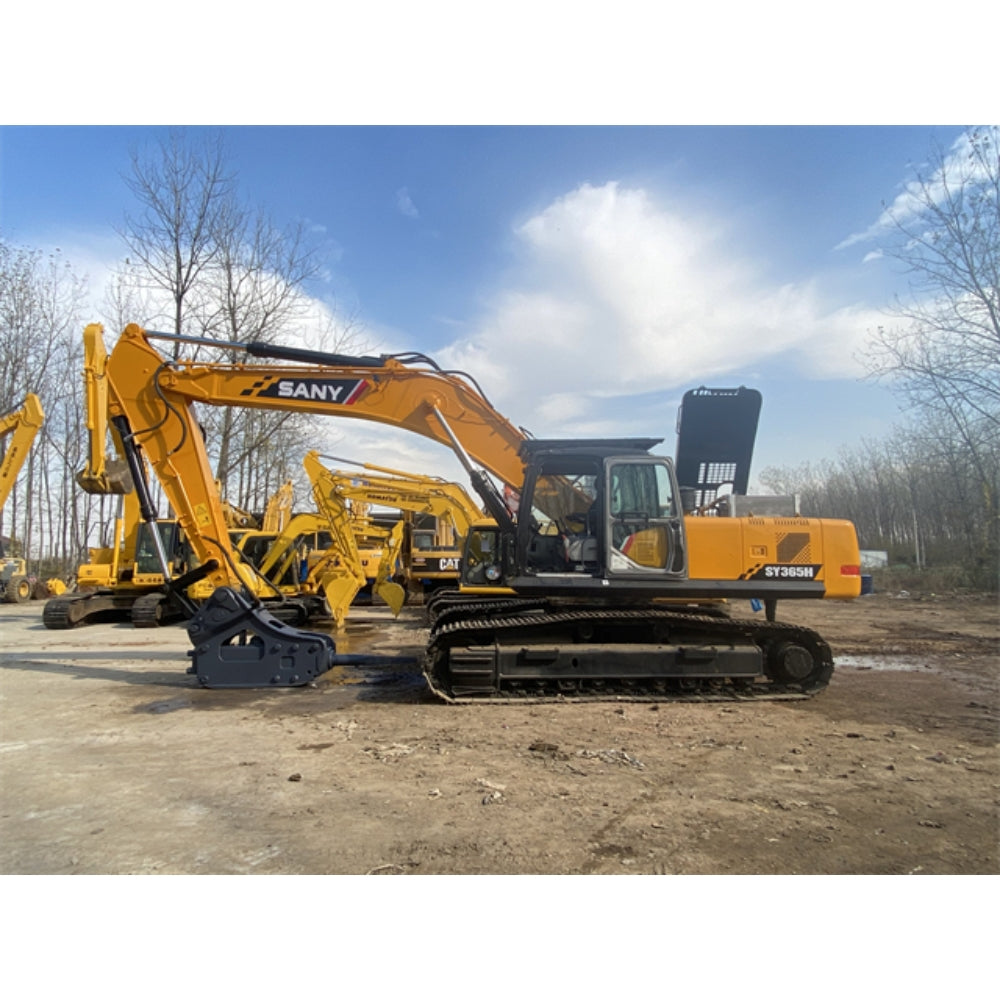

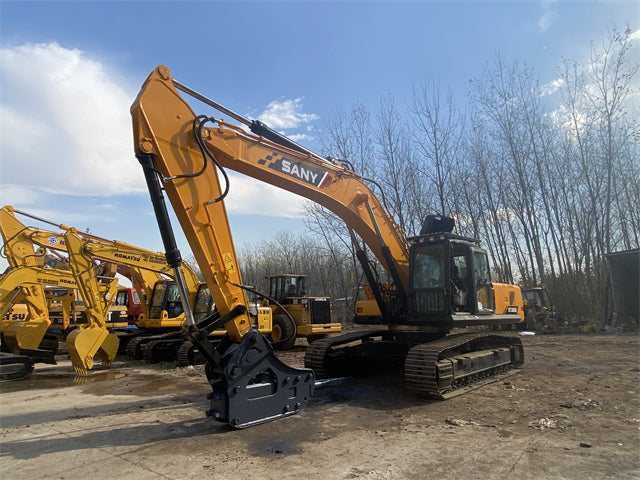

USED SANY SY365H EXCAVATOR

I. Basic Specifications

• Model: SY365H
• Tonnage: 36 tons
• Operating Weight: 36,000 kg
• Bucket Type: Backhoe
• Application: Mining
• Power Type: Fuel

II. Engine Parameters

• Engine Brand: Isuzu
• Engine Model: 6HK1
• Emission Standard: China IV
• Configuration: Direct injection, 6-cylinder, 4-stroke, turbocharged, intercooled, water-cooled
• Rated Power: 210 kW / 1,900 rpm
• Maximum Torque: 1,080 N·m / 1,500 rpm
• Displacement: 7.79 L

III. Performance Parameters

• Traveling Speed: High speed 5.5 km/h, Low speed 3.5 km/h
• Slewing Speed: 9.2 rpm
• Gradeability: 35°
• Ground Pressure: 67 kPa
• Bucket Digging Force: 235 kN
• Arm Digging Force: 210 kN

IV. Dimensions

• Overall Length (for Transportation): 11,530 mm
• Overall Width: 3,190 mm
• Overall Height (for Transportation): 3,545 mm
• Cab Full Height: 3,320 mm
• Upper Structure Width: 3,150 mm
• Standard Track Plate Width: 600 mm
• Track Gauge: 2,590 mm
• Minimum Ground Clearance: 550 mm
• Track Ground Contact Length: 4,140 mm
• Total Track Length: 5,065 mm

V. Operating Range

• Maximum Digging Radius: 10,780 mm
• Maximum Digging Depth: 7,050 mm
• Maximum Digging Height: 9,890 mm
• Maximum Dumping Height: 6,920 mm
• Maximum Vertical Digging Depth: 3,970 mm
