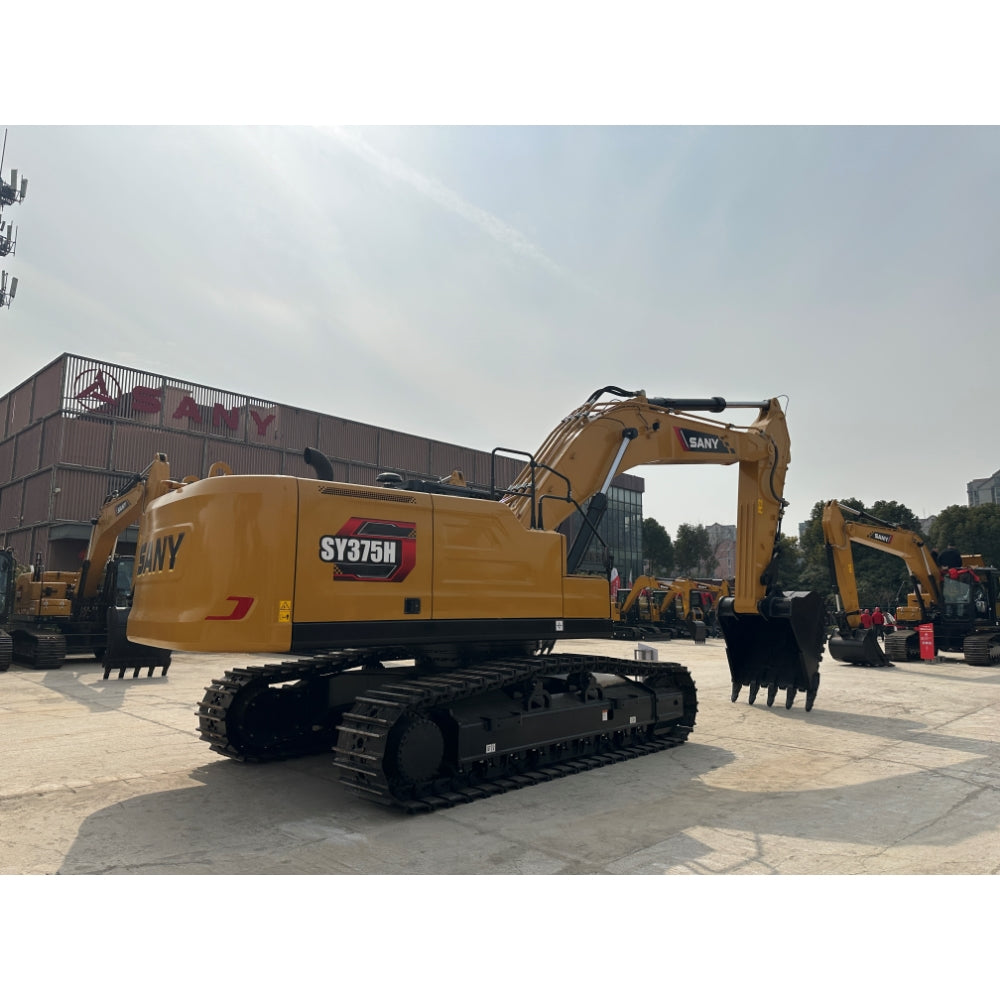

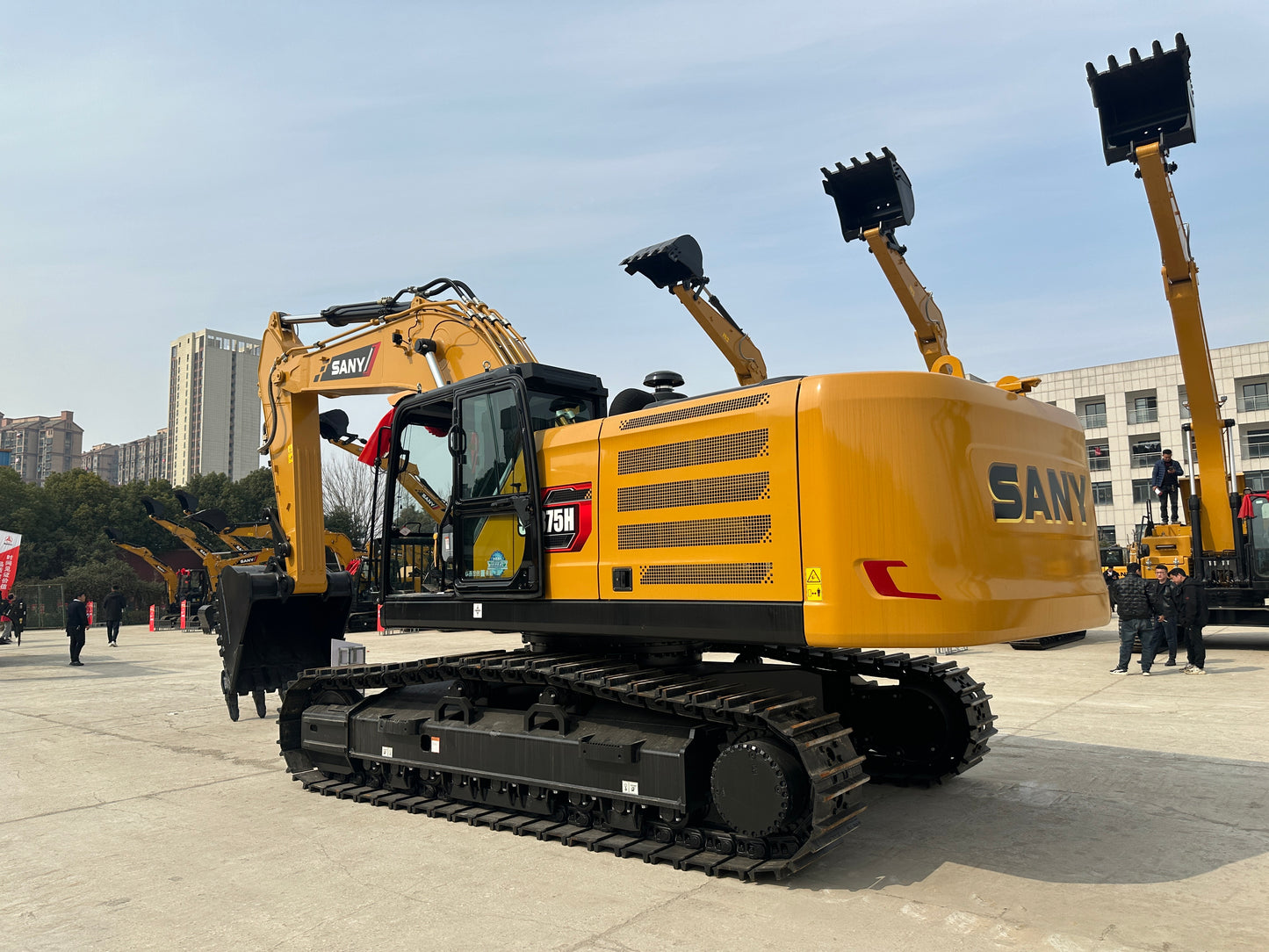

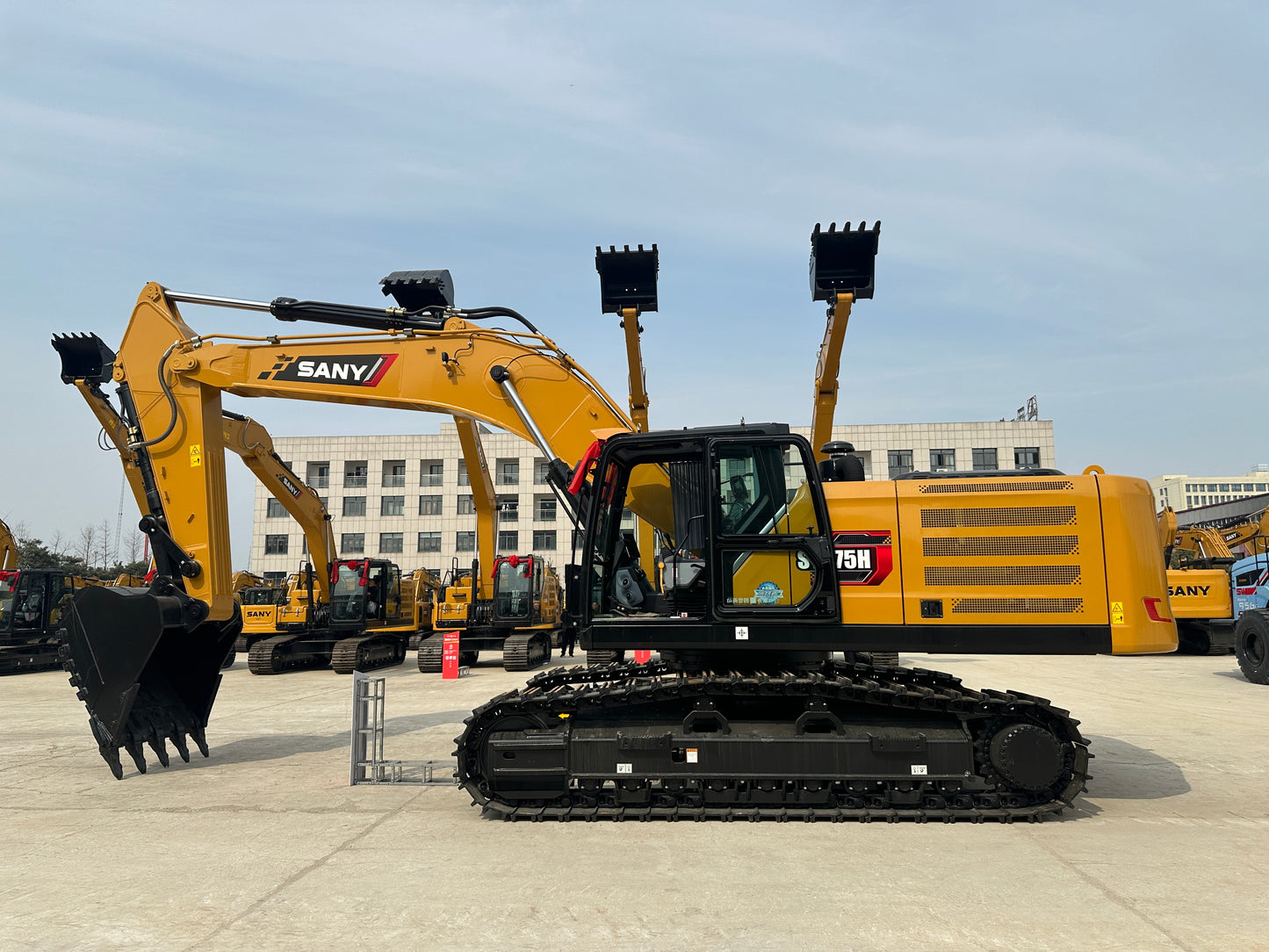

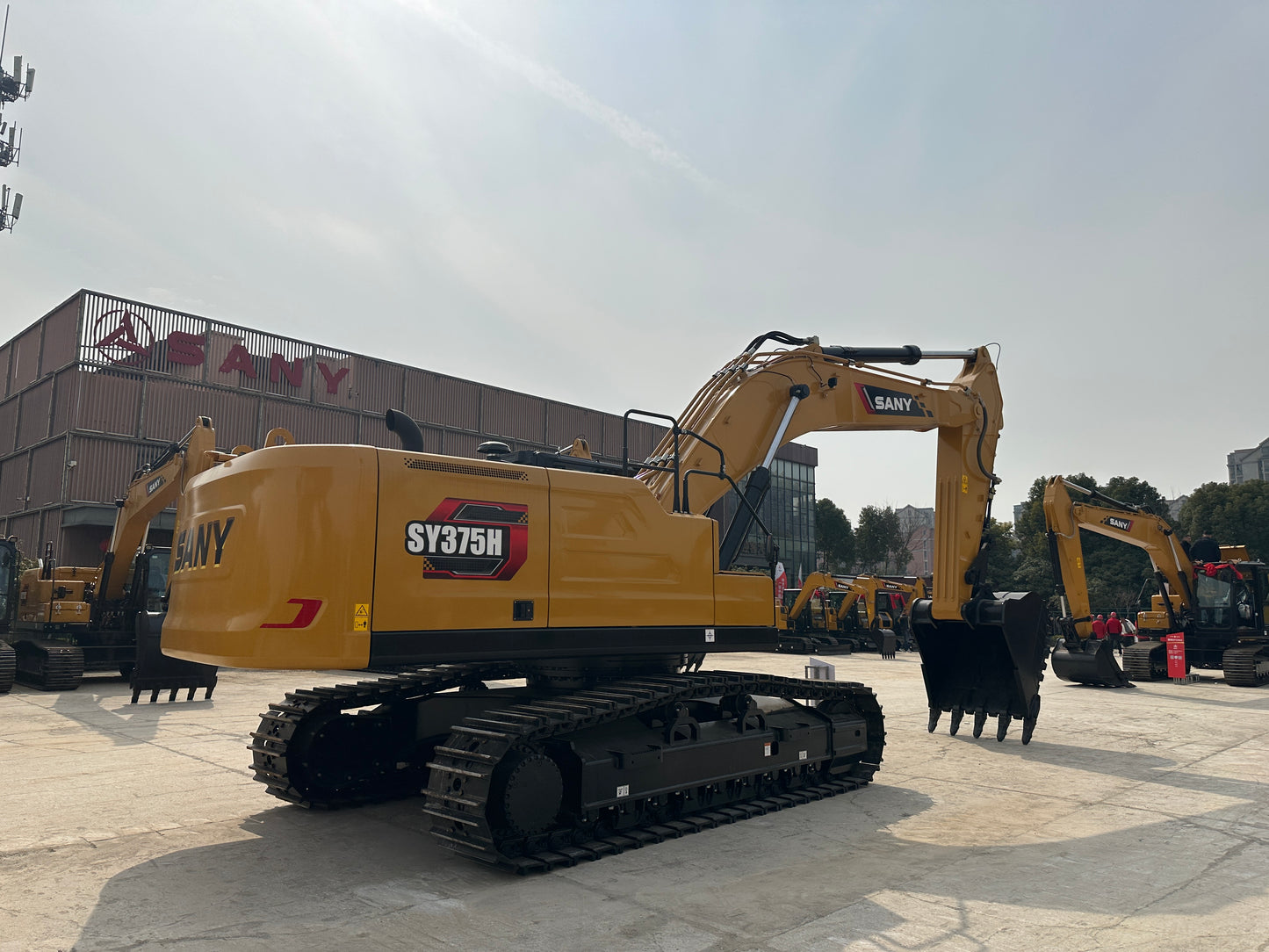

USED SANY SY375H EXCAVATOR

I. Basic Specifications

• Model: SY375H
• Tonnage: Heavy Excavator
• Operating Weight: 37,500 kg
• Bucket Type: Backhoe
• Application: Mining
• Power Type: Fuel

II. Engine Parameters

• Engine Brand: Isuzu
• Engine Model: GH-6HK1XKSC
• Emission Standard: China IV
• Configuration: Direct injection, 6-cylinder, 4-stroke, turbocharged, intercooled, water-cooled
• Rated Power: 212 kW / 2,000 rpm
• Maximum Torque: 1,080 N·m / 1,500 rpm
• Displacement: 7.79 L

III. Performance Parameters

• Traveling Speed: High speed 5.5 km/h, Low speed 3.5 km/h
• Slewing Speed: 8.8 rpm
• Gradeability: 70%
• Ground Pressure: 68.8 kPa
• Bucket Digging Force: 235 kN
• Arm Digging Force: 210 kN

IV. Dimensions

• Overall Length: 11,425 mm
• Overall Width: 3,190 mm
• Overall Height: 3,825 mm
• Standard Track Plate Width: 600 mm
• Track Gauge: 2,590 mm
• Minimum Ground Clearance: 550 mm
• Track Ground Contact Length: 4,140 mm
• Total Track Length: 5,100 mm

V. Operating Range

• Maximum Digging Radius: 10,750 mm
• Maximum Digging Depth: 7,155 mm
• Maximum Digging Height: 9,920 mm
• Maximum Dumping Height: 7,010 mm
• Maximum Vertical Digging Depth: 5,125 mm
