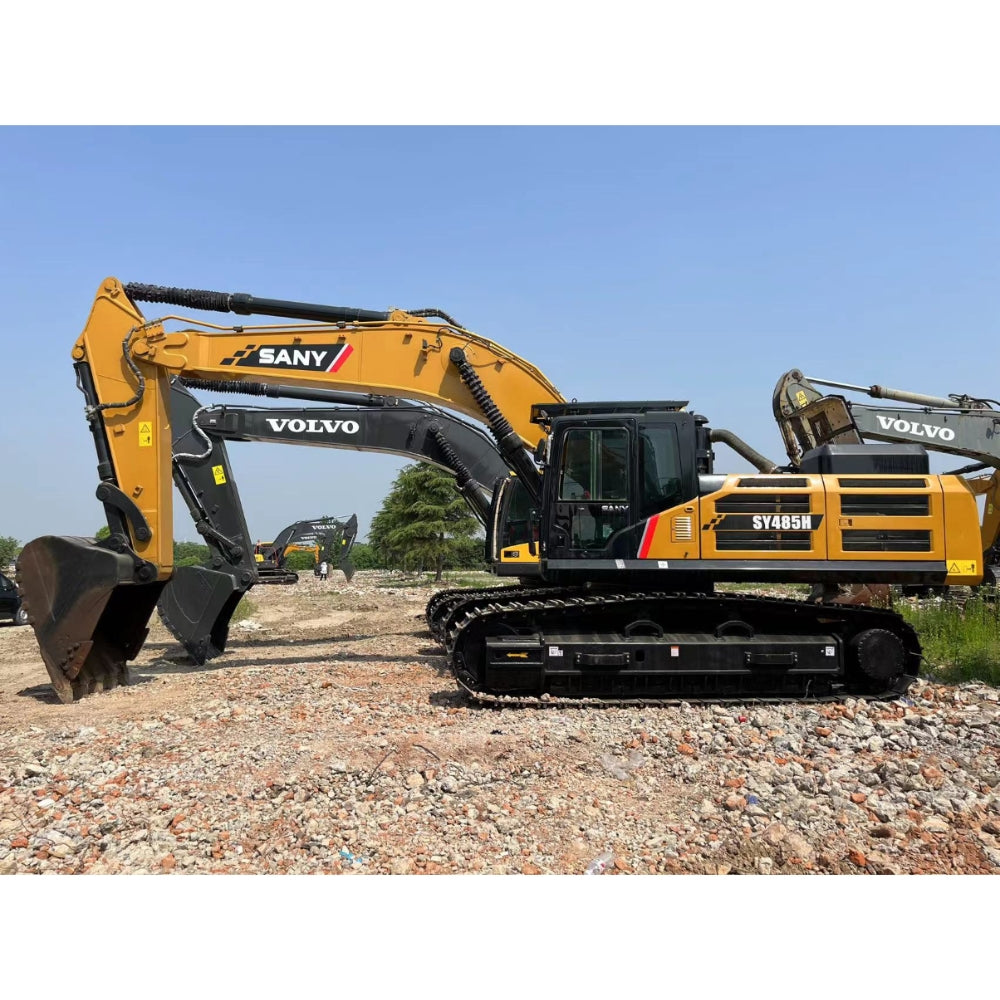

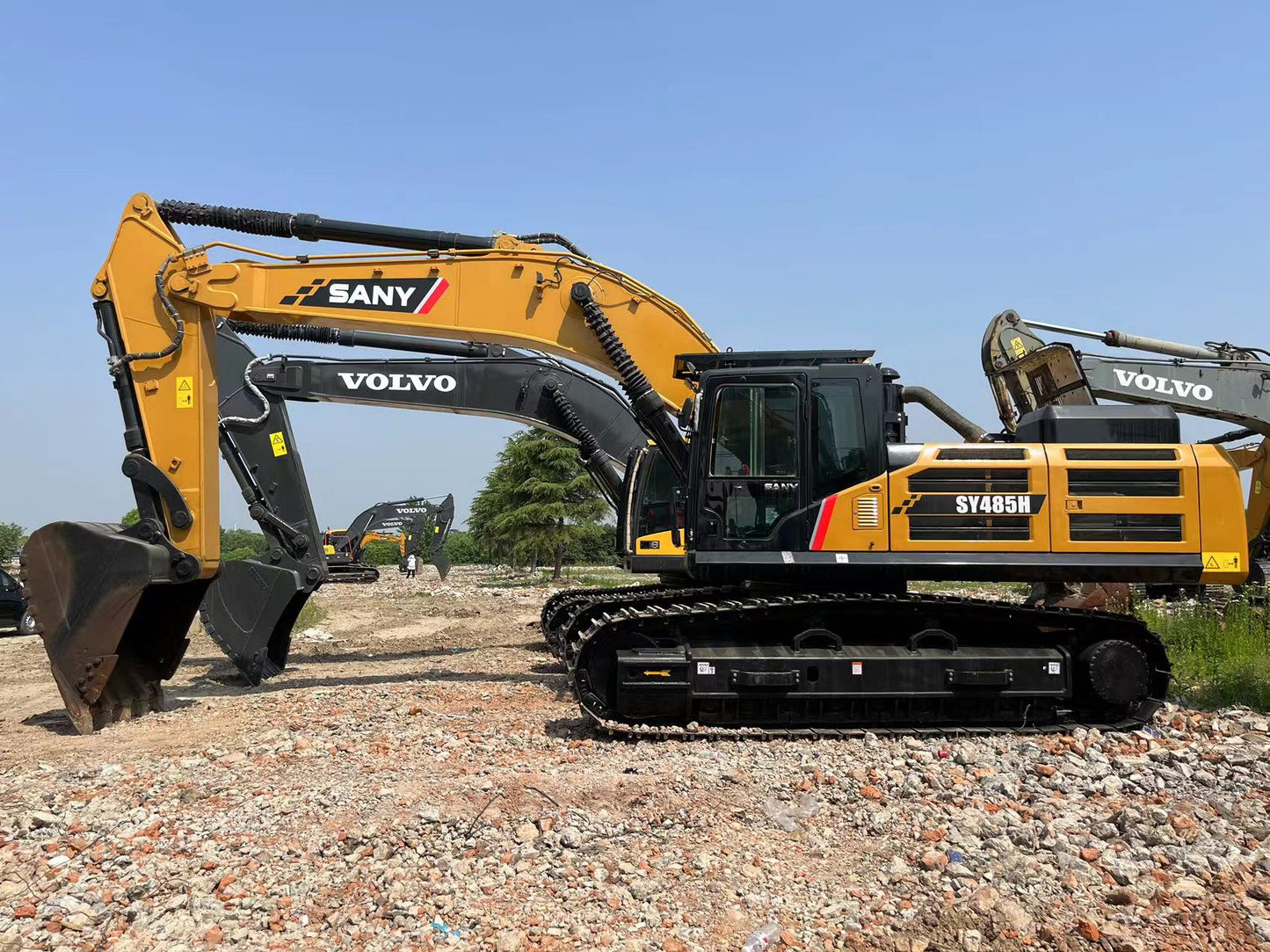

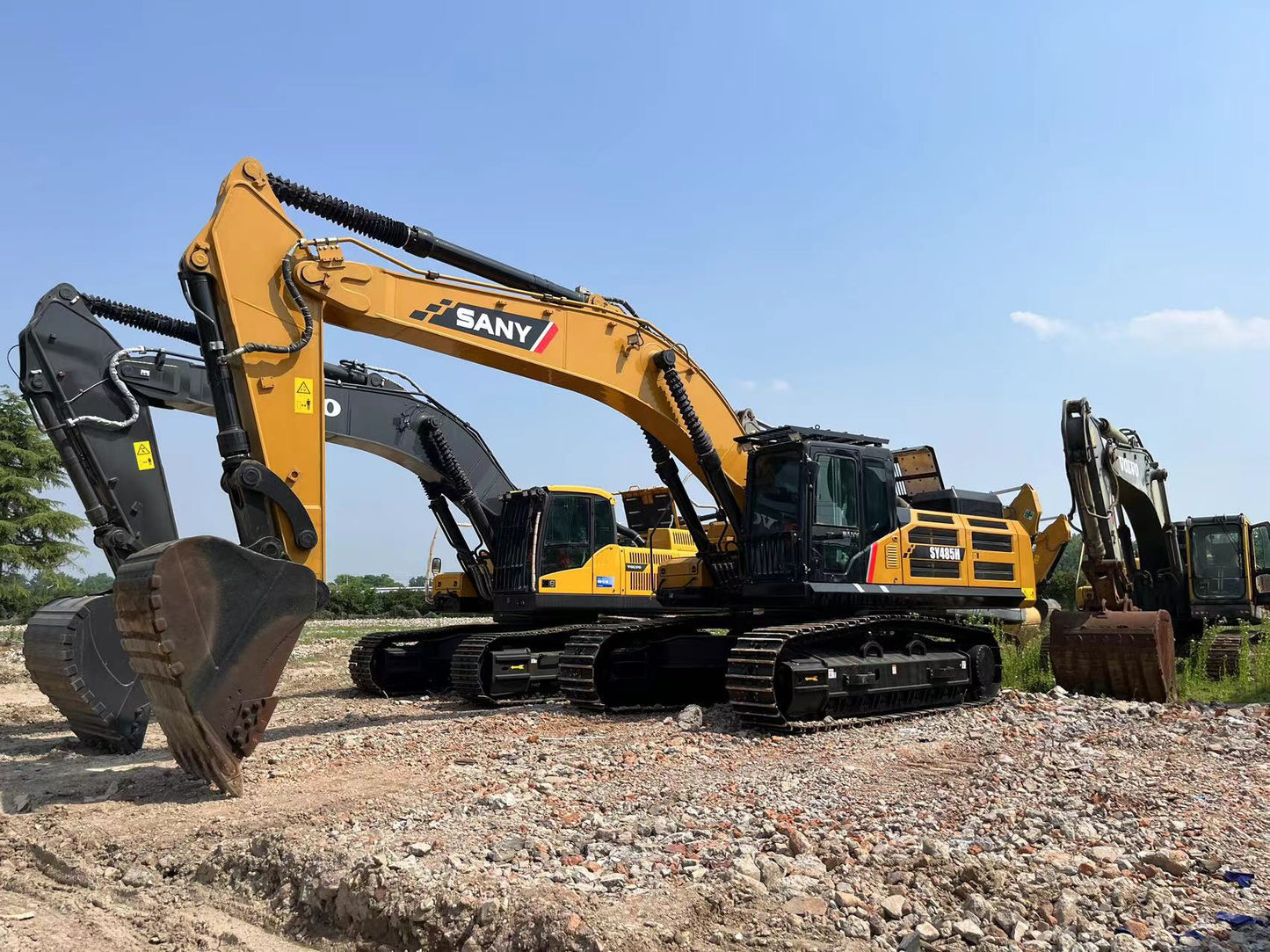

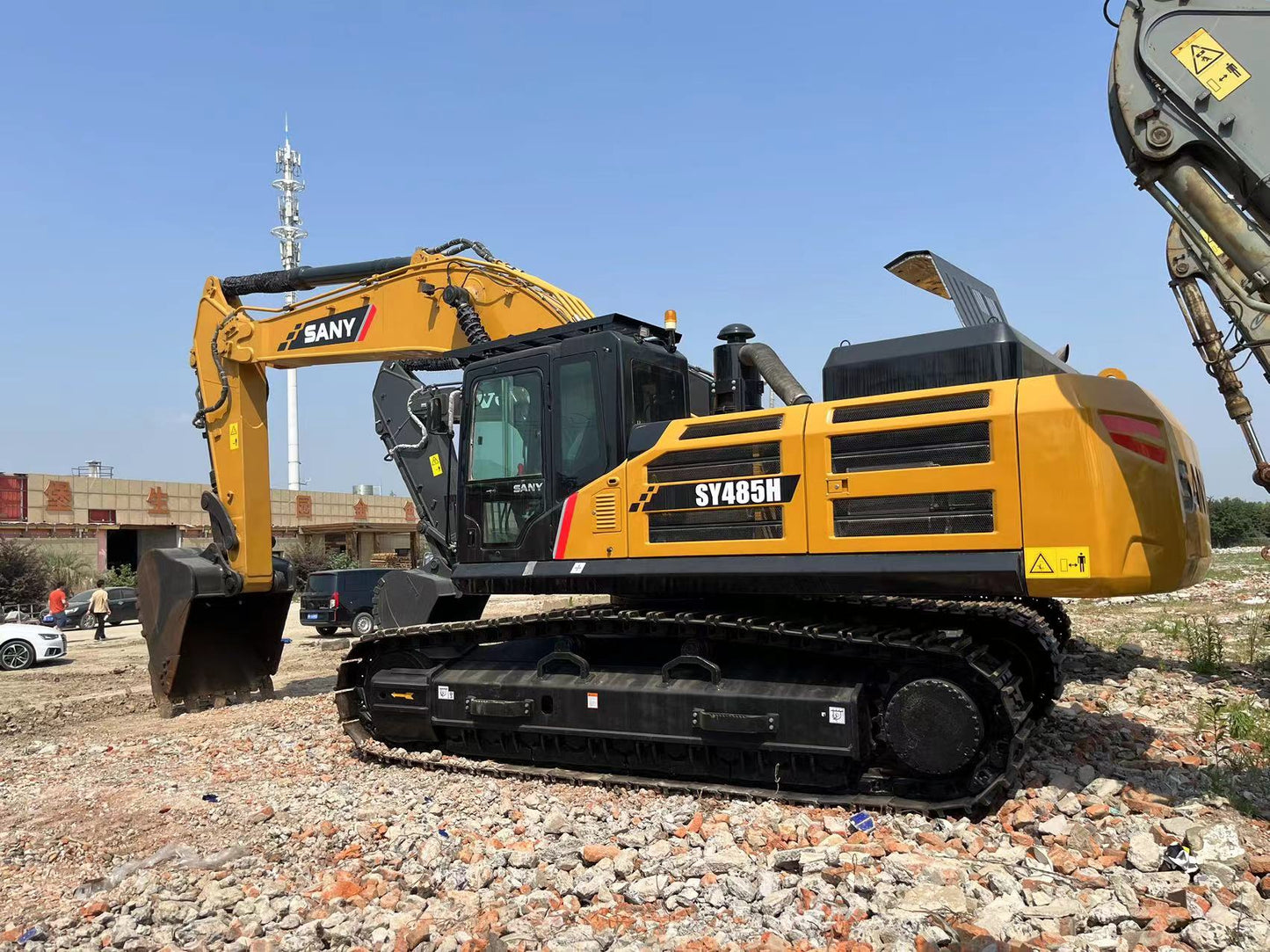

USED SANY SY485H EXCAVATOR

I. Basic Specifications

• Equipment Model: SY485H
• Model Abbreviation: 485
• Weight Class: Heavy Excavator (30-50 tons)
• Travel Method: Crawler
• Bucket Type: Backhoe
• Application: Mining
• Power Type: Fuel

II. Engine Parameters

• Engine Brand: Isuzu
• Emission Standard: China III/China IV
• Engine Model: 6WG1X
• Configuration: Direct injection, 6-cylinder, 4-stroke, turbocharged, intercooler, water-cooled
• Rated Power: 300kW / 1800rpm
• Maximum Torque: 1950N·m
• Displacement: 15.681L
• Number of Cylinders: 6

III. Performance Parameters

• Operating Weight: 48500kg
• Bucket Capacity: 2.2~3.1m³
• Traveling Speed: High/Low (5.4/3.1km/h)
• Slewing Speed: 8rpm
• Ground Pressure: 80.42Kpa
• Gradeability: 70%
• Bucket Digging Force: 280kN
• Arm Digging Force: 245kN

IV. Dimensions

• Overall Length for Transportation: 12095mm
• Overall Width for Transportation: 3360mm
• Overall Height for Transportation: 3790mm
• Track Ground Contact Length: 4415mm
• Total Track Length: 5440mm
• Track Plate Width: 600mm
• Track Gauge: 2740mm
• Minimum Ground Clearance: 560mm
• Minimum Slewing Radius of Front Working Device: 5240mm
• Rear Slewing Radius: 3765mm

V. Operating Range

• Maximum Digging Radius: 11860mm
• Maximum Digging Depth: 7370mm
• Maximum Digging Height: 10900mm
• Maximum Dumping Height: 7450mm

VI. Fluid Capacities

• Fuel Tank: 680L
• Hydraulic Oil Tank: 480L
• Engine Oil Change Quantity: 42~57L
