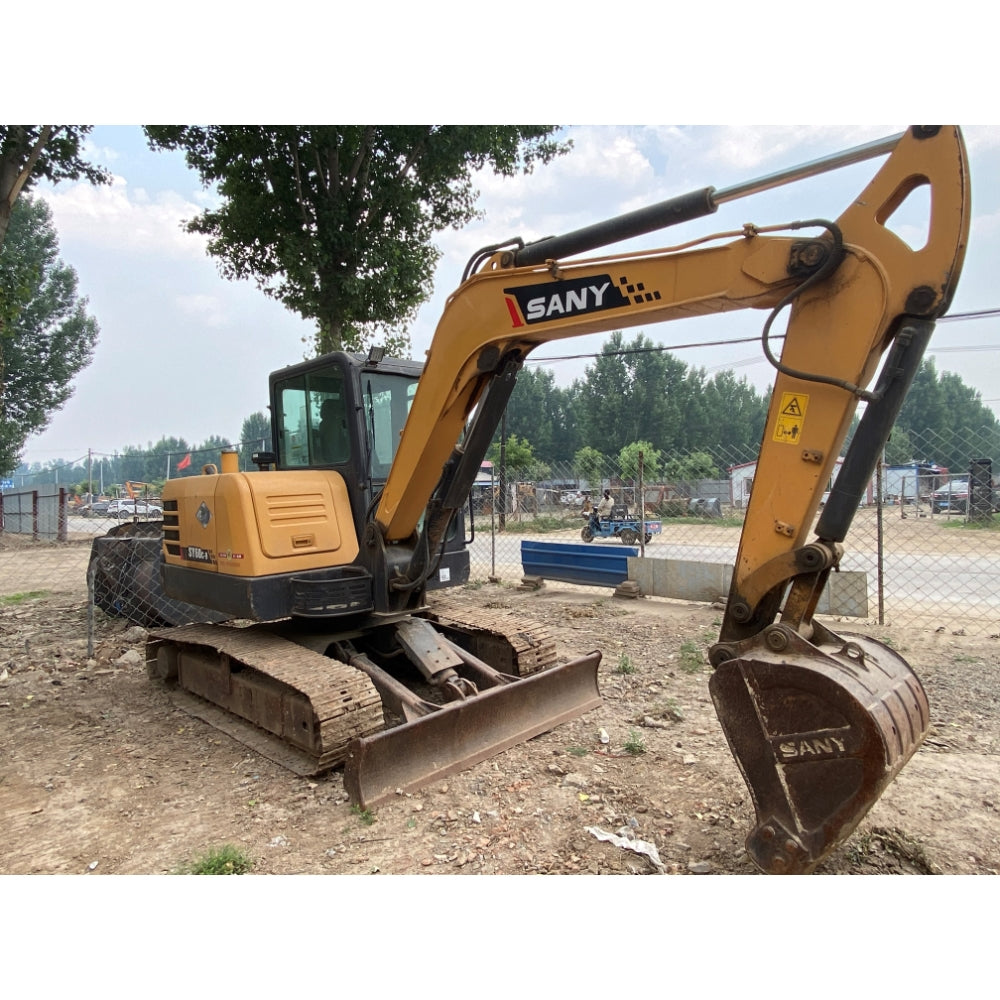

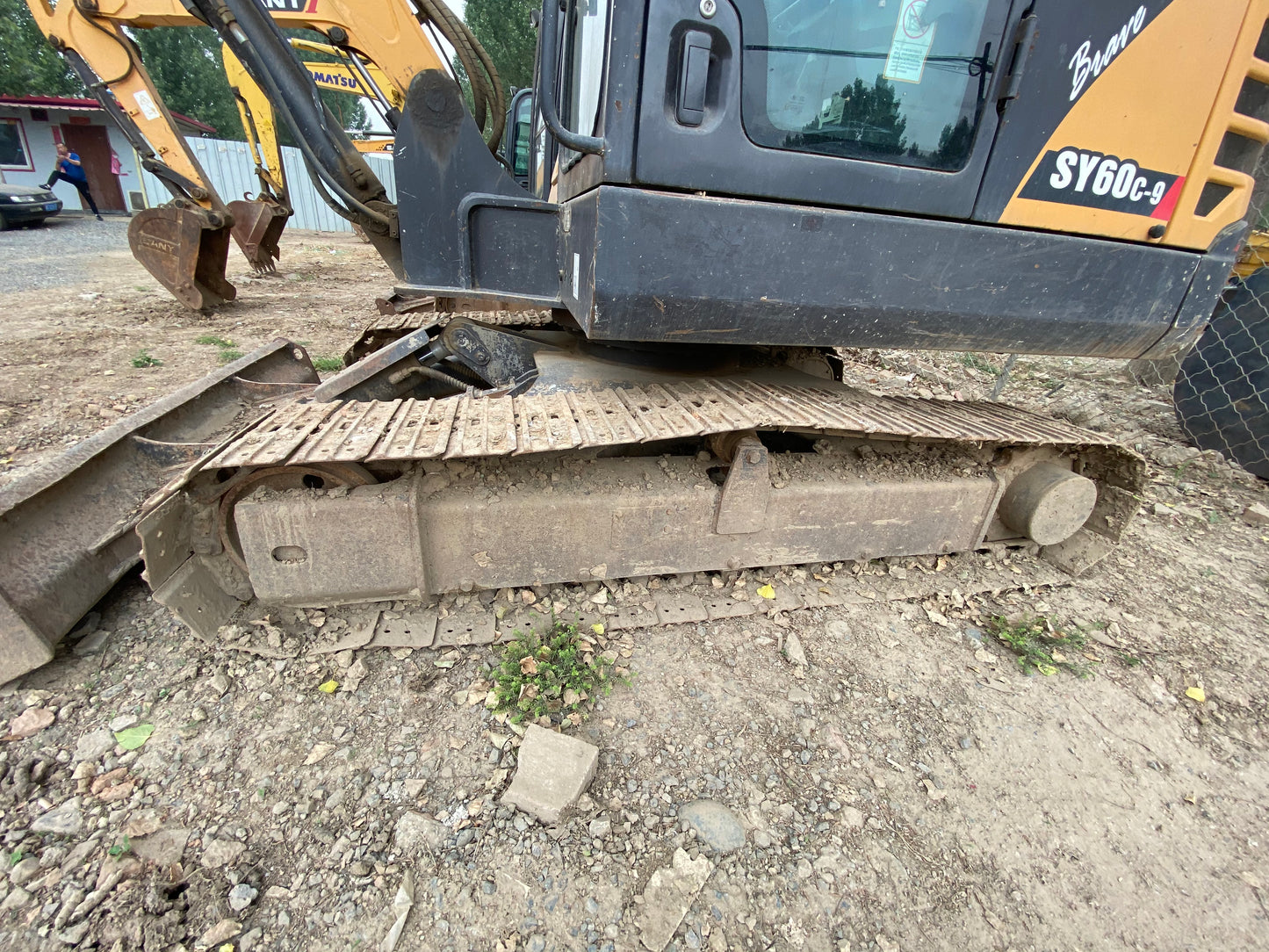

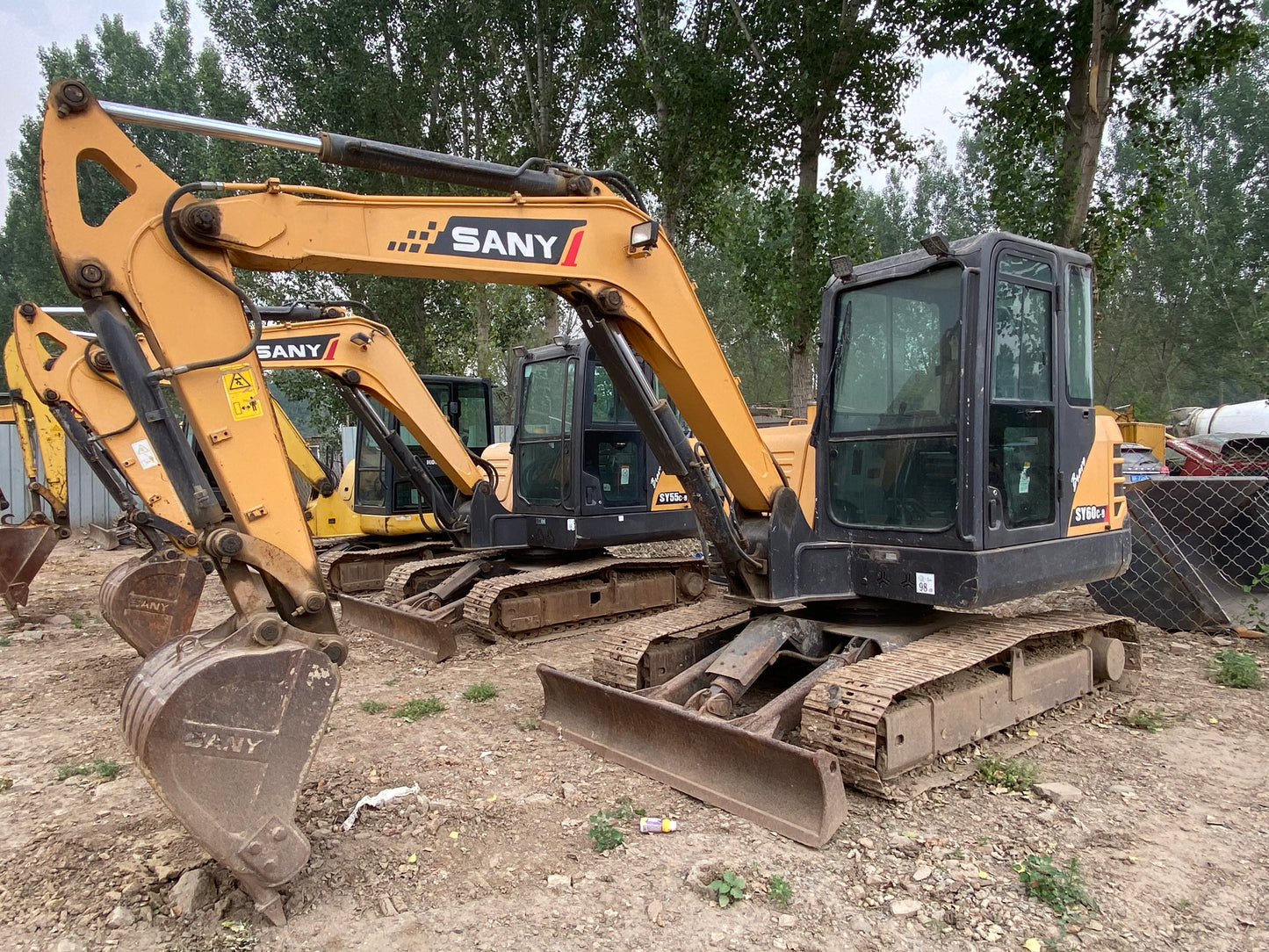

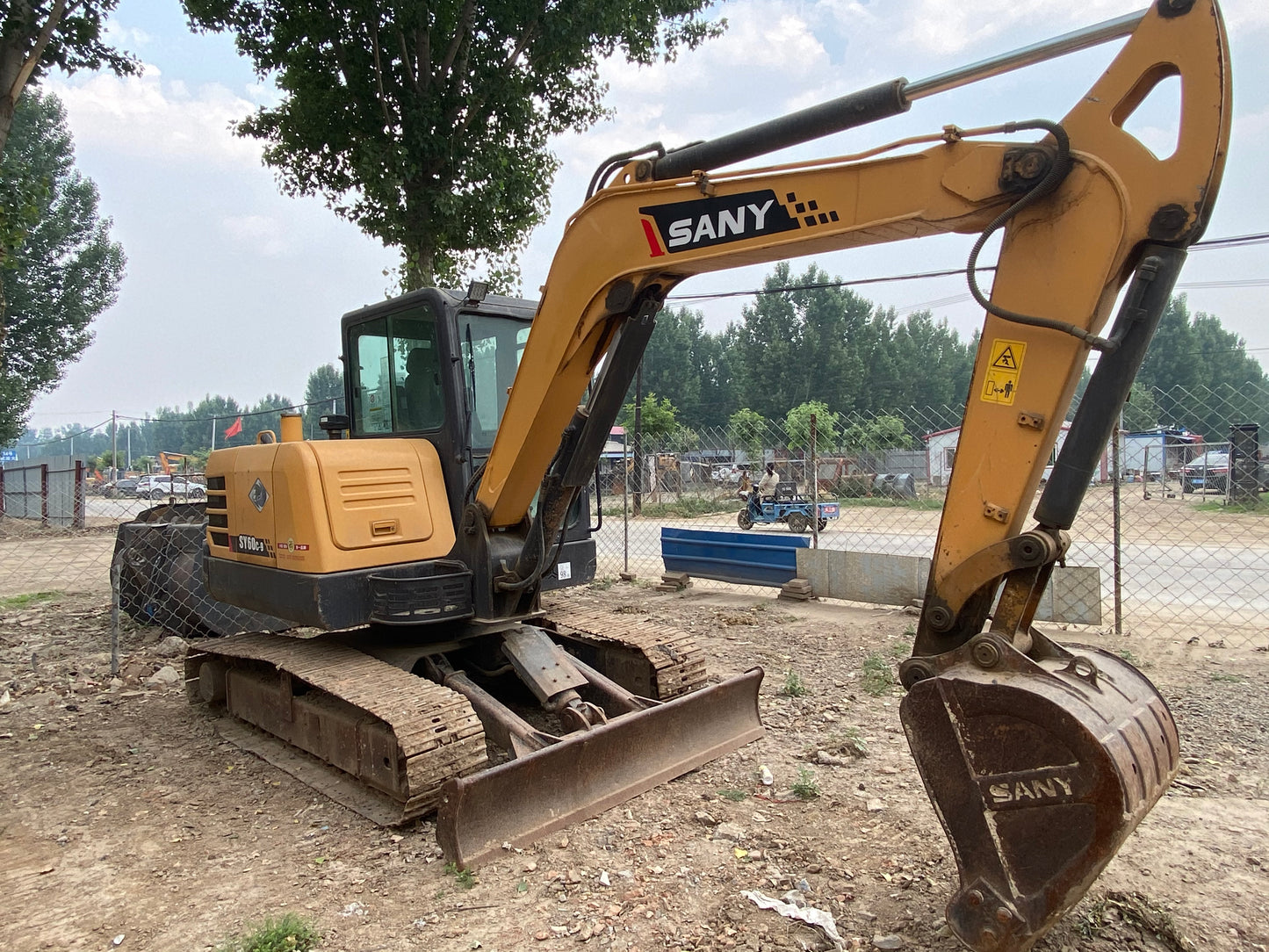

USED SANY SY60C-9 EXCAVATOR

I. Basic Parameters

• Model: SY60C-9
• Tonnage: 6 tons (small excavator)
• Operating Weight: 6000kg
• Purpose: Universal
• Bucket Type: Backhoe
• Power Type: Traditional Power

II. Engine Parameters

• Engine Model: Isuzu 4JG1-NABGB-04-C2
• Rated Power: 40.9kW/2100rpm
• Cooling Method: Water-cooled
• Maximum Torque: 191N·m/1800rpm
• Number of Cylinders: 4 Cylinders

III. Performance Parameters

• Bucket Capacity: 0.23m³
• Swing Speed: 9.6rpm
• Traveling Speed: High/Low (4.22/2.25km/h)
• Climbing Ability: 70% (35°)
• Ground Pressure: 30.7kPa
• Bucket Digging Force: 45kN
• Arm Digging Force: 33kN

IV. Dimensional Parameters

• Total Length for Transportation: 5925mm
• Total Width for Transportation: 2000mm
• Total Height for Transportation: 2615mm
• Full Height of Cab: 1860mm
• Total Length of Crawler: 2705mm
• Crawler Plate Width: 400mm
• Total Width of Crawler: 2000mm
• Crawler Track Gauge: 1600mm
• Minimum Ground Clearance: 370mm
• Minimum Swing Radius of Front Working Device: 2555mm
• Rear Swing Radius: 1640mm

V. Operating Range

• Maximum Digging Radius: 6090mm
• Maximum Digging Depth: 3770mm
• Maximum Digging Height: 5735mm
• Maximum Dumping Height: 3975mm
• Maximum Vertical Digging Depth: 3025mm
